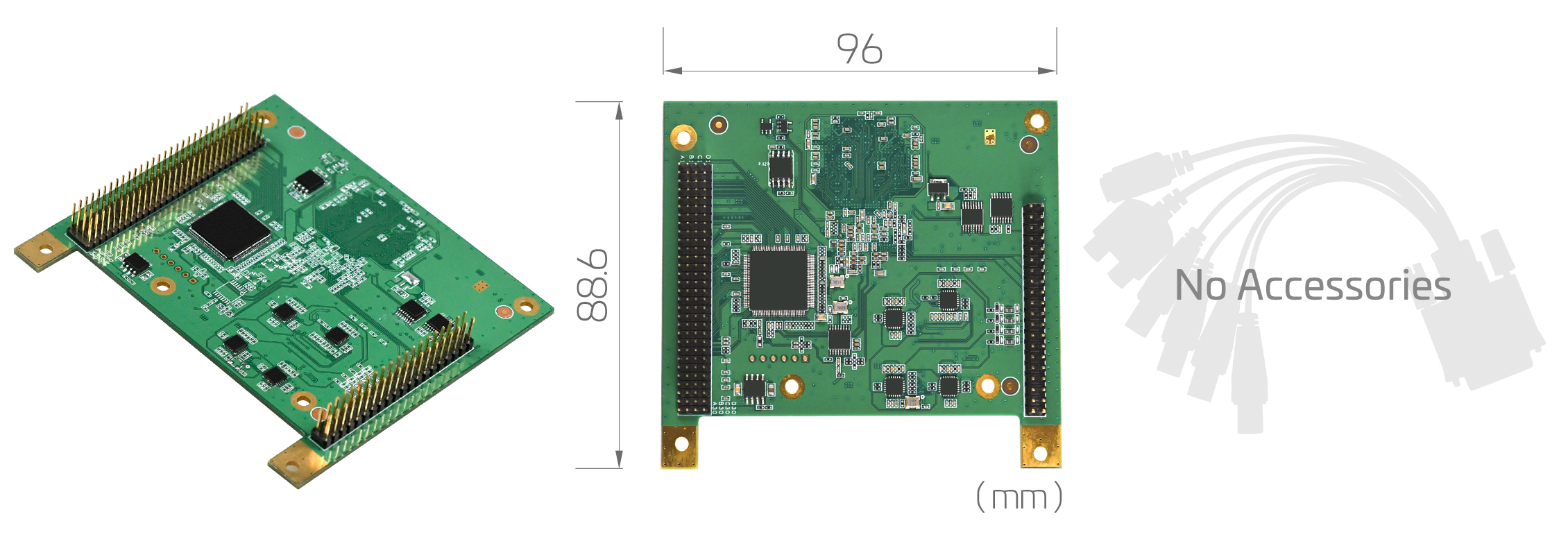

SC2C0N4 PCI104
4 CH CVBS with Hardware Encode
| Max. Input Resolution |
NTSC 120fps@720×480 PAL 100fps@720×576 |
| Video Input | 4×Pin |
| Dimension | 96×88.6 ( mm ) |
| Interface | PCI 104 |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 4×CVBS |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | H.264 |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
NTSC With D1 NTSC Camera 720×480@29.97fps 960×480@29.97fps PAL With D1 PAL Camera 720×576@25fps 960×576@25fps |
| Audio Input | 4×Pin |
| Audio Format | Stereo / 16-Bit / 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
