EYE6N0-C08M678R

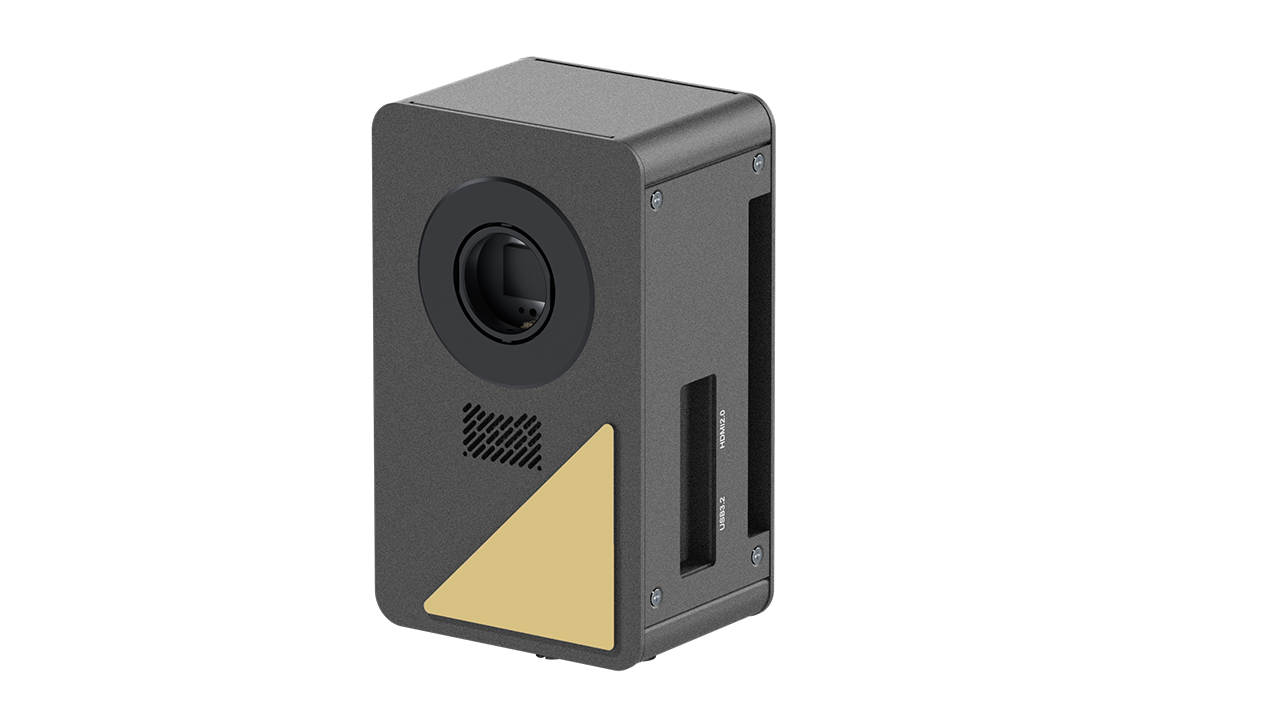

8MP P60 Intelligent Camera
Features
- Adopting Sony STARVIS 2 & Pregius S Sensor
- Hardware ISP desing without CPU/GPU Loading
- HDR ( High Dynamic Range ) Support
- DMA PCIe Design High-Bandwidth Capture, providing RGB444 video quality
- C-Mount Design offering flexibility for professional customers to use different lens combinations
| System | |
|---|---|
| CPU |
NVIDIA® Jetson Orin™ NX 8GB NVIDIA® Jetson Orin™ NX 16GB |
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores |
| AI Performance |
NVIDIA® Jetson Orin™ NX 8GB NVIDIA® Jetson Orin™ NX 16GB |
| System Memory |
NVIDIA® Jetson Orin™ NX 8GB NVIDIA® Jetson Orin™ NX 16GB |
| Interface | |
| Storage | Supports External NVMe 1×Micro SD Card Slot |
| Display Interface | 1×Mini DP1.4 |
| Ethernet | 1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Expansion Slot | M.2 1×M.2 2230 M Key PCIe Gen4×2 Slot 1×M.2 2230 E Key PCIe Gen4×1 Slot |
| USB | 1×USB3.2 Gen2 ( Type-C ) 1×USB3.2 Gen1 ( Type-A ) |
| Peripheral Communication |
14 Pin Header 1×USB2.0 4×GPIO 1×UART 1×I2C 8 Pin Pheonix Connector ( CON1 ) 1×GPIO 1×RS232 1×RS485 8 Pin Pheonix Connector ( CON2 ) 1×GPIO 2×I2C |
| Misc. Features | Firmware Upgradable |
