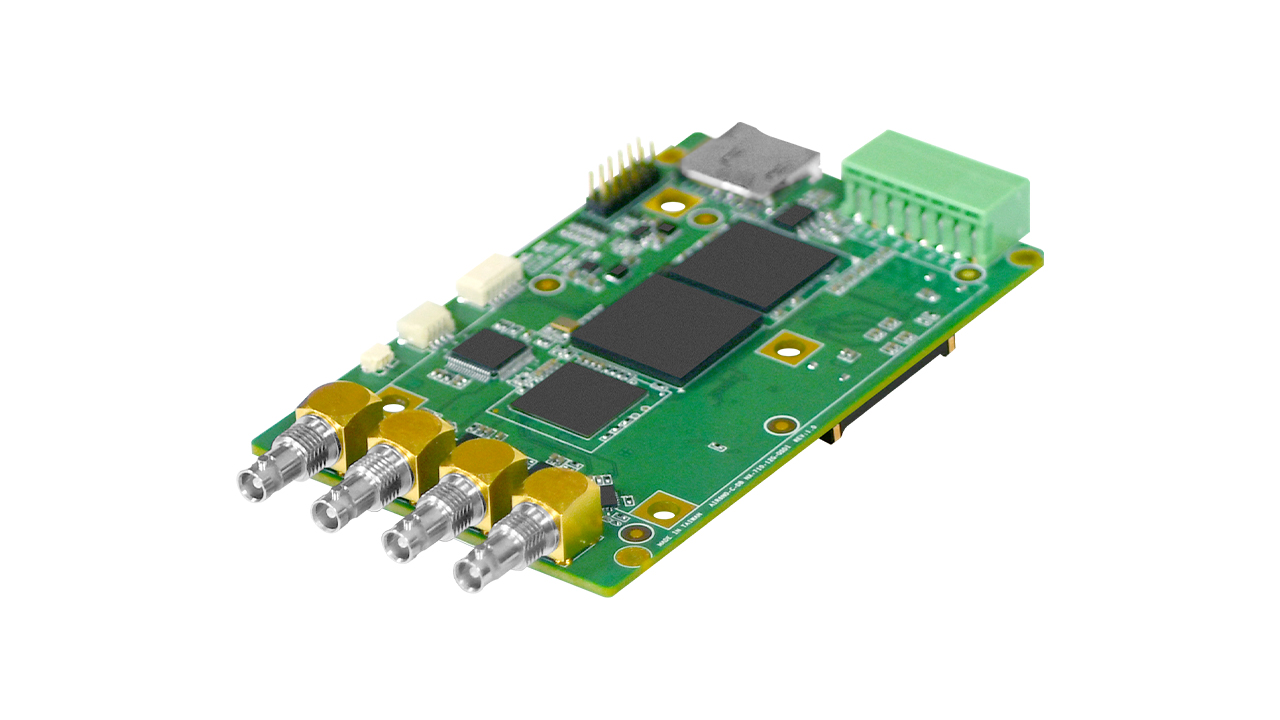

AIR6N0-C-DB NX 12G-SDI QL
AI Edge for 12G-SDI, 1×4K60 / 2×4K30 / 4×HD60




Features
- Business Card Size
- 1×12G-SDI | 2×6G-SDI | 4×3G-SDI In
- Single-Link, Dual-Link, Quad-Link Support

Interface | |
---|---|
Peripheral Communication | 8 Pin Phoenix Connector 1×GPIO 1×RS232 (*) 1×I2C 2×6 Pin Header 3×GPIO 1×RS485 1×I2C * Please select either RS232 of 8 Pin Phoenix Connector or UART of 6 Pin Wafer to use |
Storage | 1×Micro SD Card Slot |
Video Capture Resolutions |
Single Channel Mode : Multi Channel Mode : Single Link 2×6G-SDI : 4096×2160@30/25/24fps 3840×2160@30/25/24fps 4×3G-SDI : 1920×1080p@60/50fps 4×HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 4×SD-SDI : 720×480i@60fps 720×576i@50fps |
Misc. Features |
Firmware Upgradable |
Development Environment | |
JetPack | 6.2 or Higher |
Environment | |
Power Consumption | TBA |
Operating Temperature | 0~6 0 ℃ with Airflow |
Storage Temperature | -20~80 ℃ |
Certification | CE, FCC |
