SC720N1-L DP1.4a

1 CH DP1.4a 8K30/4K120

SC720N1-L DP1.4a
Max. Input Resolution 7680×4320@30/25fps
Video Input 1×DP1.4a

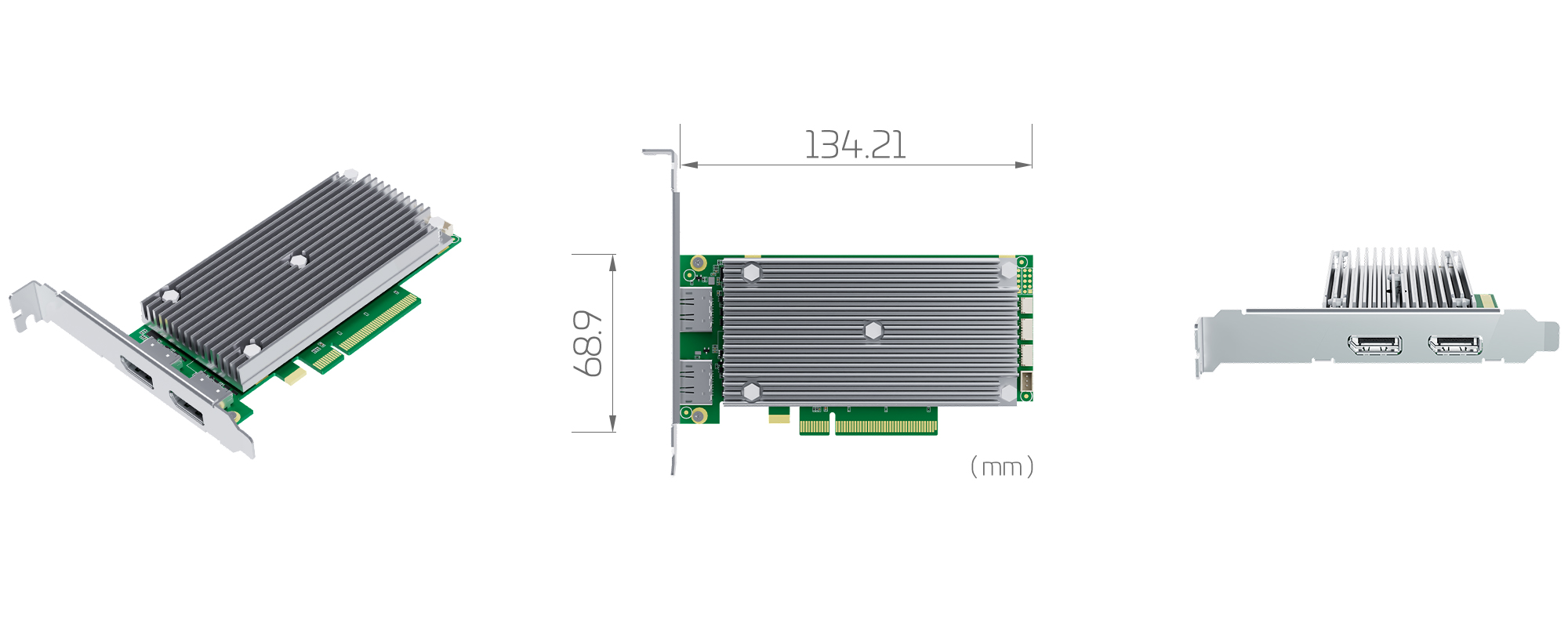

Dimension 134.21×68.9 ( mm )
PCIe Low Profile
Interface PCIe×8 ( Gen2 )
Feature Multi Instances
Multi Devices
Video Input Detail DP1.4a
Video Output DP1.4a
( Loop-Through )
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010
Build-in Hardware Encode N/A
Video Processing Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions DP1.4 :
7680×4320@30/25fps
3840×2160@120/60/50/30/25/24fps
2560×1440p@144fps
1920×1080p@240/144/120/100fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

※More resolution supported by SDK
Audio Input 1×Stereo Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
GPIO N/A
WatchDog N/A
Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting

※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
