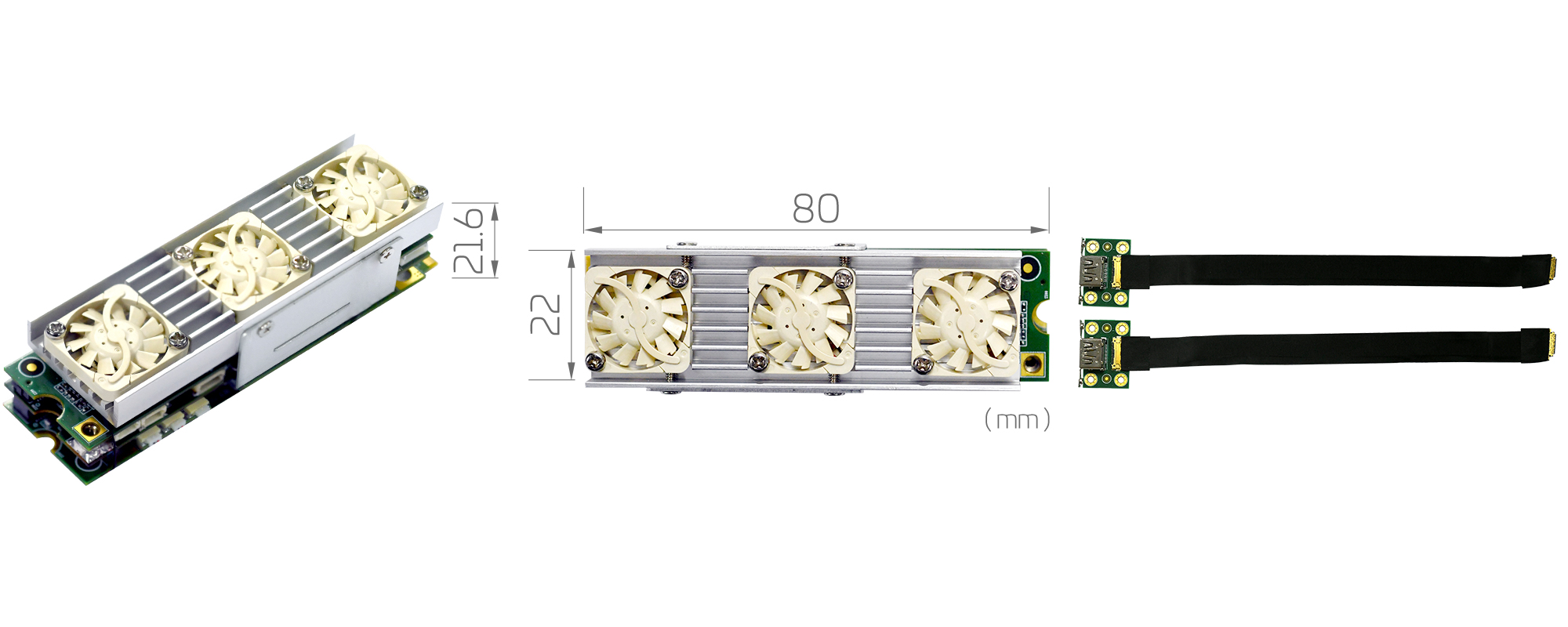

SC710N2 M2 HDMI2.0
2 CH 4K60 HDMI2.0
![SC710N2 M2 HDMI2.0](/keeper/images/Q2FwdHVyZQ/TS4y/NEsgU29mdHdhcmUgQ29tcHJlc3Npb24/U0M3MTBOMiBNMiBIRE1JMi4wIENvdmVy.jpg)
Max. Input Resolution | 4096×2160p@60/50fps |
Video Input | 2×HDMI2.0 |
Dimension |
22×80 ( mm ) M.2 Type M |
Interface | M.2 ( PCIe×4 ) |
Feature |
8K30 Dual-Link HDMI 2.0 Multi Instances Multi Devices |
Video Input Detail |
Single-Link HDMI 2.0 Dual-Link HDMI 2.0 |
Video Output | N/A |
Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
Build-in Hardware Encode | N/A |
Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
Video Resolutions |
4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ※More resolution supported by SDK |
Audio Input | 2×Stereo Embedded Audio |
Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
GPIO | N/A |
WatchDog | N/A |
Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
SDK | Windows and Linux SDK |
OS Support |
Windows 7/Windows 8/Windows 8.1/Wind0ows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
