SC400N1 MC HDV
1 CH 1080P60 HDMI/DVI-I/YPbPr
| Max. Input Resolution | 1920×1080p@60/50fps |
| Video Input | 1×HDMI, 1×VGA, 1×YPbPr |

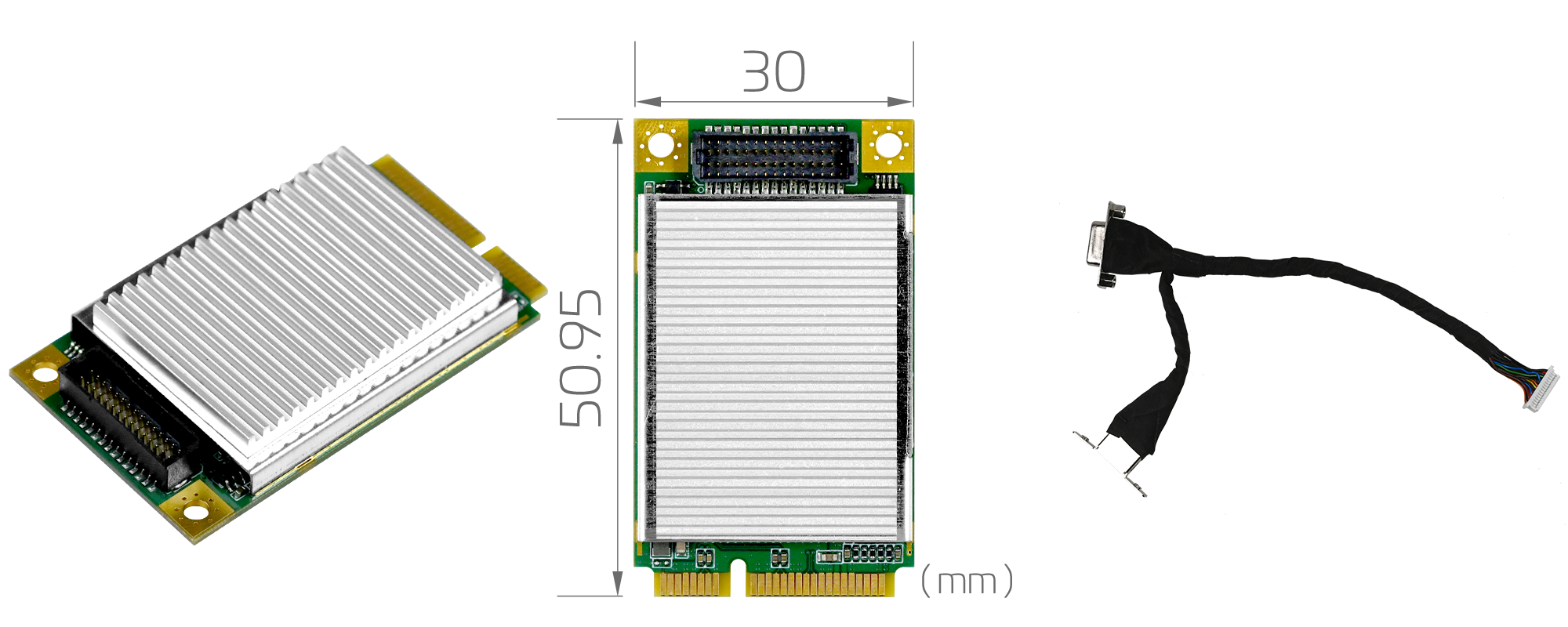

| Dimension | 30×50.95 ( mm ) |
| Interface | MiniCard ( PCIe×1 ) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail |
HDMI VGA YPbPr |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
HDMI, DVI : 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ✻ More resolution supported by SDK YPbPr 1920×1080p@60/50fps 1920×1080i@60/50fps 1280×720p@60/50fps 720×480p@60fps 720×576p@50fps |
| Audio Input |
1×HDMI Embedded Audio Audio L/R ( Through Wafer Connector ) |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
