SC3C0N8 MC
SC3C0N8 MC
| Max. Input Resolution |
NTSC 240fps @ 960/720×480 PAL 200fps @ 960/720×576 |
| Video Input | 8×CVBS |

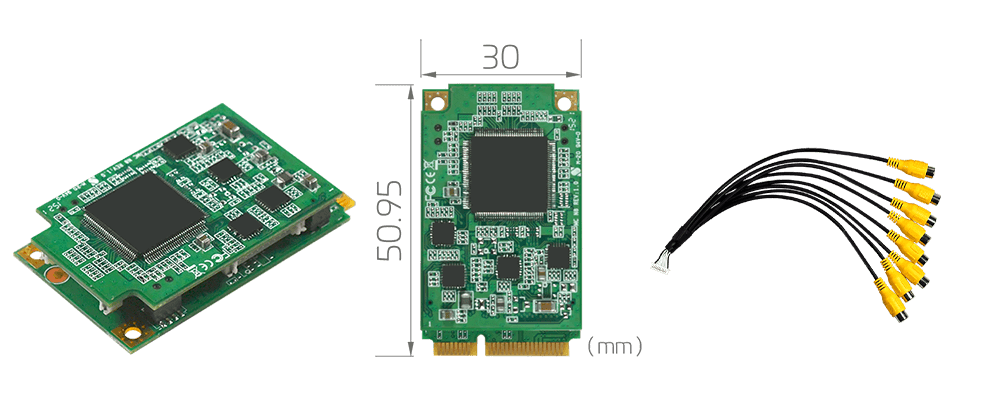

| Dimension | 30×50.95 (mm) |
| Interface | Minicard (PCIe×1) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 8×CVBS |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | H.264 |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
NTSC With WD1 NTSC Camera 960×480@29.97fps 720×480@29.97fps 704×240@29.97fps 480×240@29.97fps 352×240@29.97fps 240×120@29.97fps 176×120@29.97fps With D1 NTSC Camera 720×480@29.97fps 704×240@29.97fps 480×240@29.97fps 352×240@29.97fps 240×120@29.97fps 176×120@29.97fps PAL With WD1 PAL Camera 960×576@25fps 720×576@25fps 704×288@25fps 480×288@25fps 352×288@25fps 240×144@25fps 176×144@25fps With D1 PAL Camera 720×576@25fps 704×288@25fps 480×288@25fps 352×288@25fps 240×144@25fps 176×144@25fps |
| Audio Input | 8×pin |
| Audio Format | Mono / 16-Bit / 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
