PD575 HDMI2.0 HDR
1 CH 4K60 HDMI2.0
Max. Input Resolution |
3840×2160p @ 60/50fps 1920×1080p@240/200fps |
Video Input | 1 × HDMI2.0 |

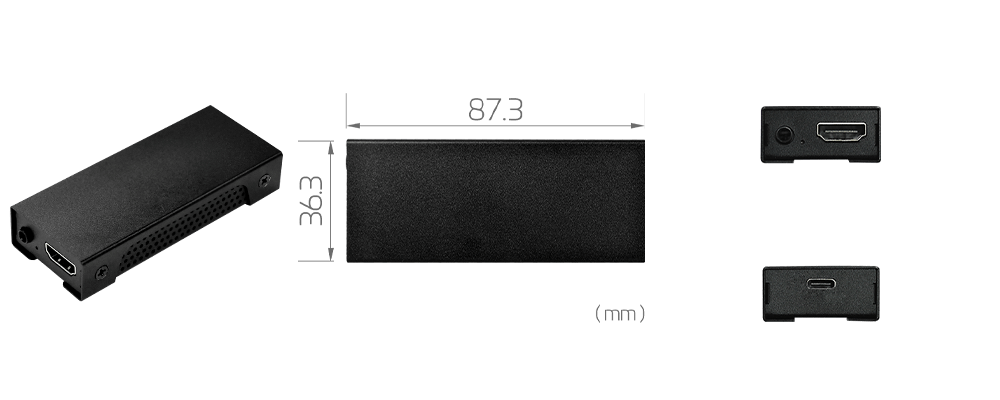

Dimension | N/A |
Interface | USB3.0 Type C (SuperSpeed) UVC |
Feature | N/A |
Video Input Detail | 1 × HDMI2.0 |
Video Output | N/A |
Color Format |
YUY2, P010, NV12, RGB24 (USB 3.0) YUY2, NV12 (USB 2.0) |
Build-in Hardware Encode | N/A |
Video Processing | N/A |
Video Resolutions |
USB3.0 Support Resolution All resolution below 3840×2160p@60fps 1920×1080p@240fps ( 422 10Bit HDR, 444 8Bit HDR ) |
UVC Video Output Resolution |
USB3.0 Support Resolution NV12 3840×2160p@30/25fps 1920×1080p@120/100fps 2560×1440p@60/50/30/25fps NV12,YUY2,P010,RGB24 1920×1080p@60/50/30/25fps 1280×720p@60/50/30/25fps NV12,YUY2,RGB24 720×576p@60/50/30/25fps 720×480p@60/50/30/25fps 640×480p@60/50/30/25fps USB2.0 Support Resolution NV12 1280×720p@30fps NV12,YUY2 720×576p@50fps 720×480p@60fps 640×480p@60fps |
Audio Input |
HDMI Embedded Audio 3.5mm Analog Stereo Audio |
Audio Format | Stereo / 16-bit / 48000Hz |
GPIO | N/A |
WatchDog | N/A |
OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit ) Linux / MAC OS |
