SDI Splitter
1×4 SDI Splitter
| Model Name | SDI Splitter |
| Description | 1x4 3G-SDI to 3G-SDI Reclocking Distribution Amplifier |
| Feature |
Auto Source Format Detection High Quality and Precision Signal Restore Reclocked & Amplified SDI Output Compact Size Plug and Play |
| Input Interface |
Video SDI×1 |
| Output Interface |
Loop-Through Video SDI×4 |
| Supported Video Input Format |
SDI 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format |
SDI ( Loop-Through ) As Input SDI Format |
| GENLOCK Frame Lock Mode | N/A |
| Audio Input Format | SDI : Up to 16 Channels, 24bit, 48KHz |
| Audio Output Format | SDI : Up to 16 Channels, 24bit, 48KHz |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

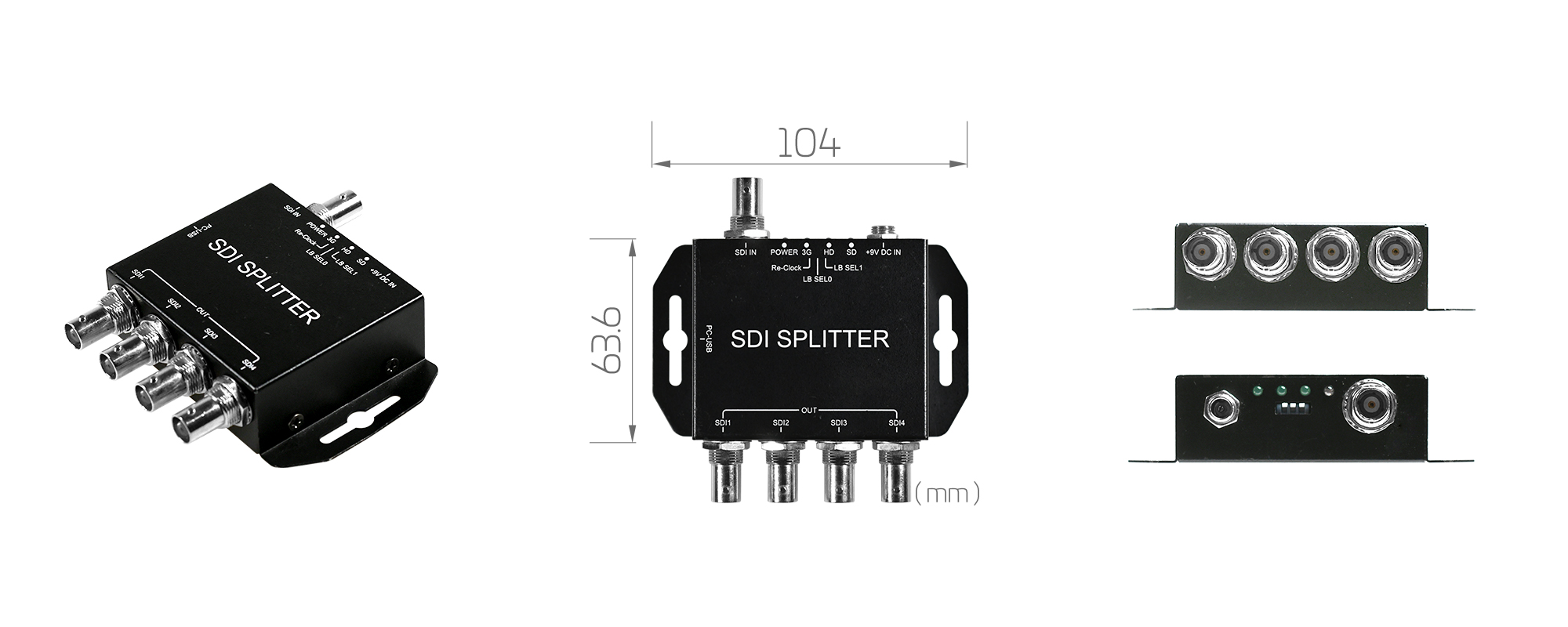

| Dimension | L:104mm×W:63.6mm×H:26mm |
