SDI Repeater
Reclocking Amplifier
![SDI Repeater](/keeper/images/Q29udmVydGVy/RXh0ZW5kZXI/SEQ/U0RJIFJlcGVhdGVyIENvdmVy.jpg)
Model Name | SDI Repeater |
Description | 3G-SDI to 3G-SDI Reclocking Amplifier |
Feature |
Auto Source Format Detection High Quality and Precision Signal Restore Reclocked & Amplified SDI Output Compact Size Plug and Play |
Input Interface |
Video SDI×1 |
Output Interface |
Loop-Through Video SDI×1 |
Supported Video Input Format |
SDI 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
Supported Video Output Format |
SDI ( Loop-Through ) As Input SDI Format |
GENLOCK Frame Lock Mode | N/A |
Audio Input Format | SDI : Up to 16 Channels, 24bit, 48KHz |
Audio Output Format | SDI : Up to 16 Channels, 24bit, 48KHz |
Plug & Play | N/A |
DC In | 7.5V ~ 15V |

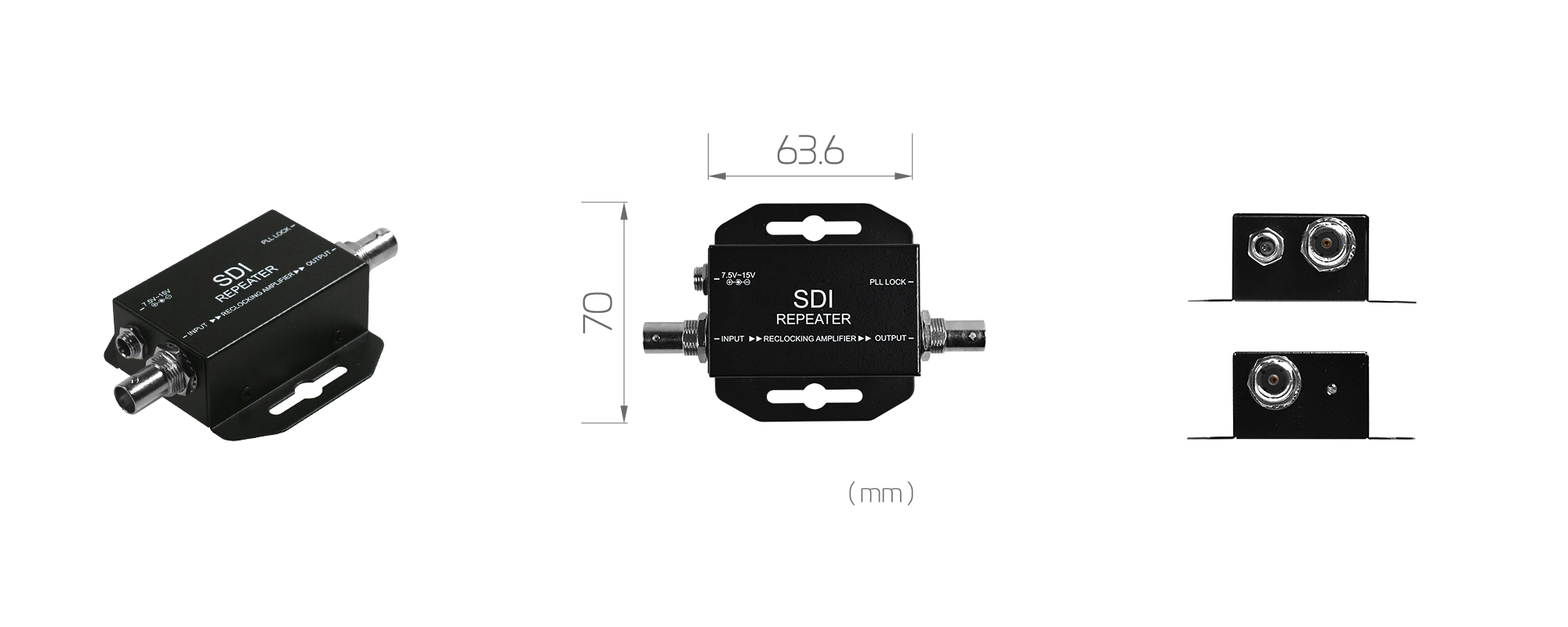

Dimension | L:70mm×W:63.6mm×H:26mm |
