SDI to VGA-S
Up/Down Converter
| Model Name | SDI to VGA-S |
| Description | 3G-SDI to VGA Up/Down Converter |
| Feature |
Multi-Standard Support ( 3G/HD/SD-SDI ) Configurable VESA Format Output from 640×480 to 1920×1080 Independent Input & Output Video Format Easy Configuration with Button and OSD Menu Dual Power Amplified SDI Loop Out |
| Input Interface |
Video SDI×1 |
| Output Interface |
Up/Down Converted Video D-Sub×1 Loop-Through Video SDI×2 |
| Supported Video Input Format |
SDI 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format |
D-Sub ( Up/Down Converted ) 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps SDI ( Loop-Through ) As Input SDI Format |
| GENLOCK Frame Lock Mode | N/A |
| Audio Input Format | SDI : Up to 16 Channels, 24bit, 48KHz |
| Audio Output Format |
SDI : Up to 16 Channels, 24bit, 48KHz ( Available with SDI Output ) |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

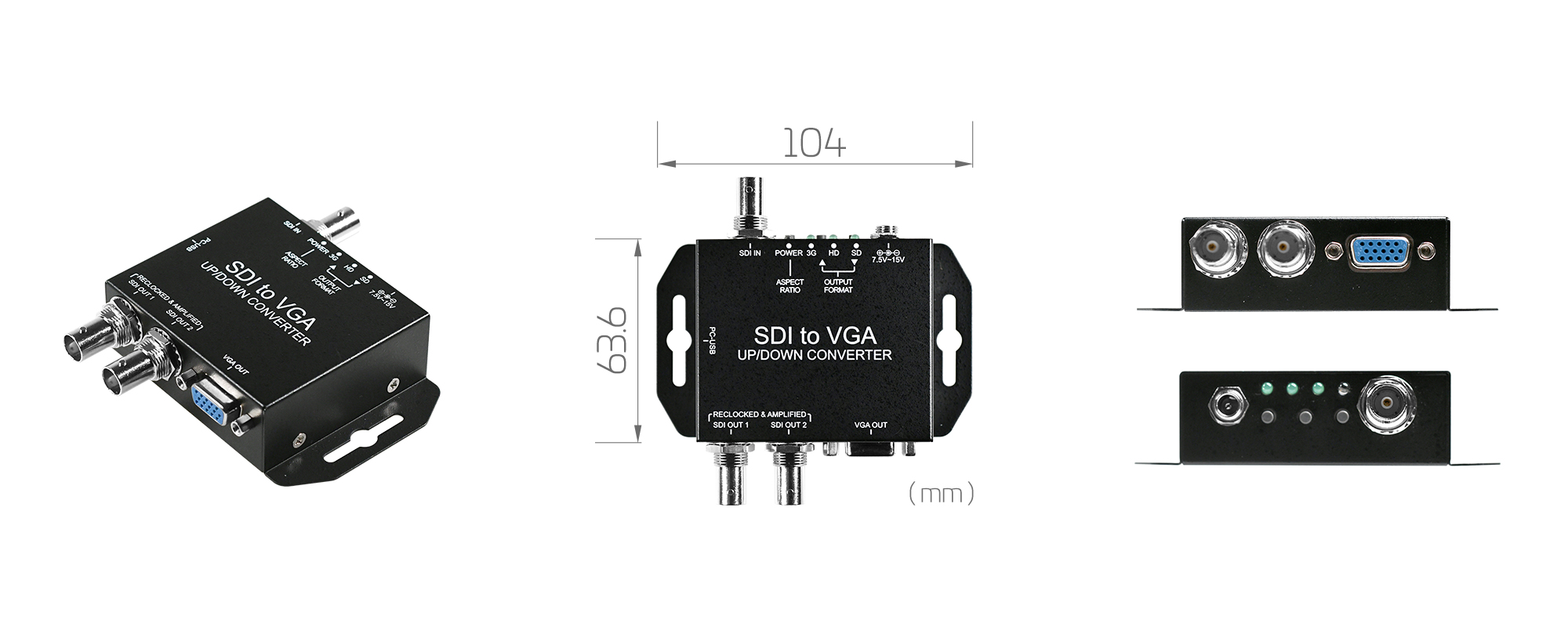

| Dimension | L:104mm×W:63.6mm×H:26mm |
