H.26X, SDVoE and HDMI2.0 Transceiver

1CH HDMI2.0/H.26X Transceiver ( H.26X + Copper + Fiber + PoE )

H.26X, SDVoE and HDMI2.0 Transceiver
Model Name H.26X, SDVoE and HDMI2.0 Transceiver
Description H.26X/SDVoE to H.26X/SDVoE Cross Converter
Feature Support Up to 4K60 SDVoE/H.26X Receive and Transfer
H.26X Tx/Rx Support
Full NDI Tx/Rx Support ( Separate License with NDI Required )
SDVoE Tx/Rx Mode Selectable
SDVoE Fiber/Copper Transfer Mode Selectable
Auto Source Format Detection
1 USB Type B for PC Connected
2 USB Type A for PC Peripheral
1 RJ45 Connector for Control Usage
RS232 Transfer Supported
Input Interface Scenario 1
Video
RJ45 ×1 ( For NDI input )
Audio
3.5mm Phone Jack×1 for L/R Audio

Scenario 2
Video
RJ45(10G) or SFP+×1 ( For SDVoE input )
Audio
3.5mm Phone Jack×1 for L/R Audio

Scenario 3
Video
HDMI 2.0×1
Audio
3.5mm Phone Jack×1 for L/R Audio

Output Interface Scenario 1
Video
HDMI 2.0×1 ( NDI Loop )
RJ45(10G) or SFP+×1 ( For SDVoE output )
Audio
3.5mm Phone Jack×1 for L/R Audio

Scenario 2
Video
HDMI 2.0×1 ( SDVoE Loop )
RJ45×1 ( For NDI output )
Audio
3.5mm Phone Jack×1 for L/R Audio

Scenario 3
Video
RJ45(10G) or SFP+×1 ( For SDVoE output )
RJ45×1 ( For NDI output )
Audio
3.5mm Phone Jack×1 for L/R Audio
Supported Video Input Format Scenario 1
RJ45
Network Packet for Video Transfer

Scenario 2
RJ45(10G)/SFP+
Network Packet for Video Transfer

Scenario 3
HDMI 2.0
4096×2160p@60/50fps
4096×2160p@30/25/24fps
3840×2160p@60/50fps
3840×2160p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1280×720p@60/50fps
1280×720p@30/25/24fps
Supported Video Output Format Scenario 1
HDMI 2.0 ( NDI Loop )
As Input Format

RJ45(10G)/SFP+
Network Packet for Video Transfer

Scenario 2
HDMI 2.0 ( SDVoE Loop )
As Input Format

RJ45(10G)/SFP+
Network Packet for Video Transfer

Scenario 3
RJ45(10G)/SFP+
Network Packet for Video Transfer

RJ45(10G)/SFP+
Network Packet for Video Transfer
GENLOCK Frame Lock Mode N/A
Plug & Play
DC In 7.5V ~ 15V
PoE PD Supported

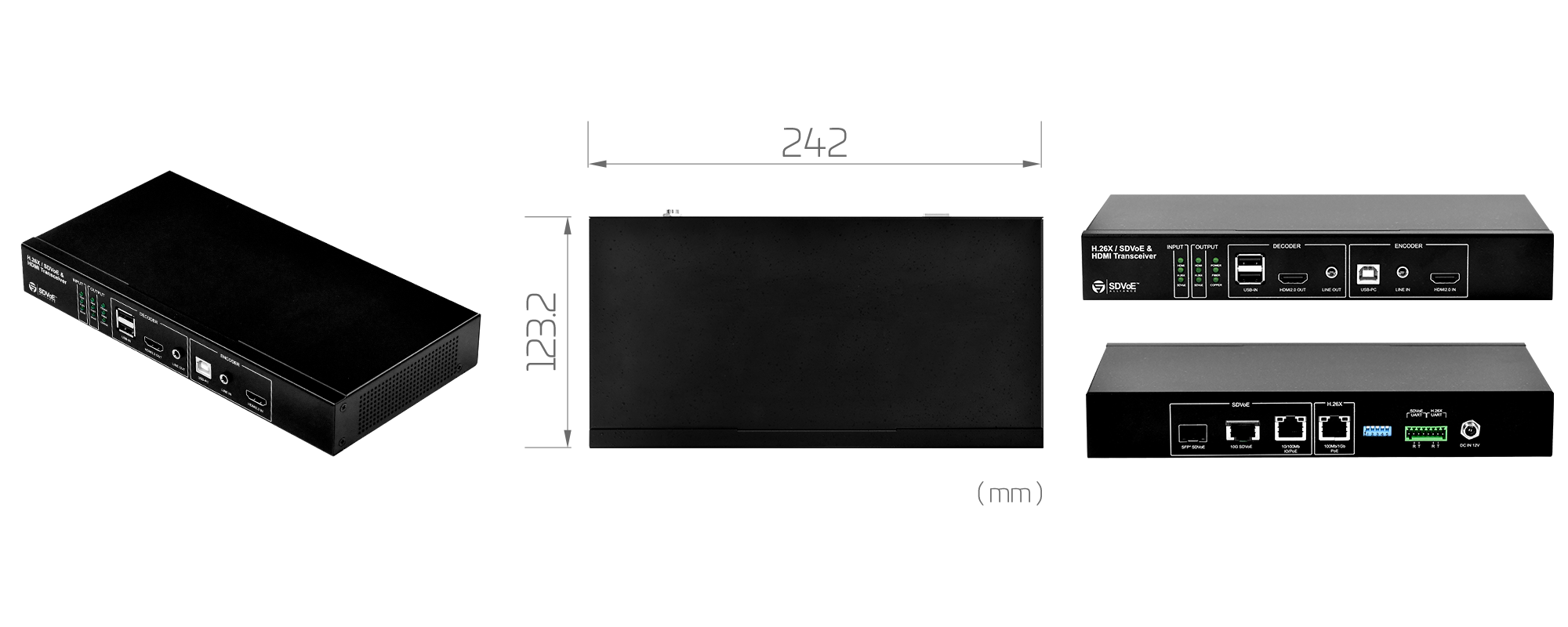

Dimensio N/C
