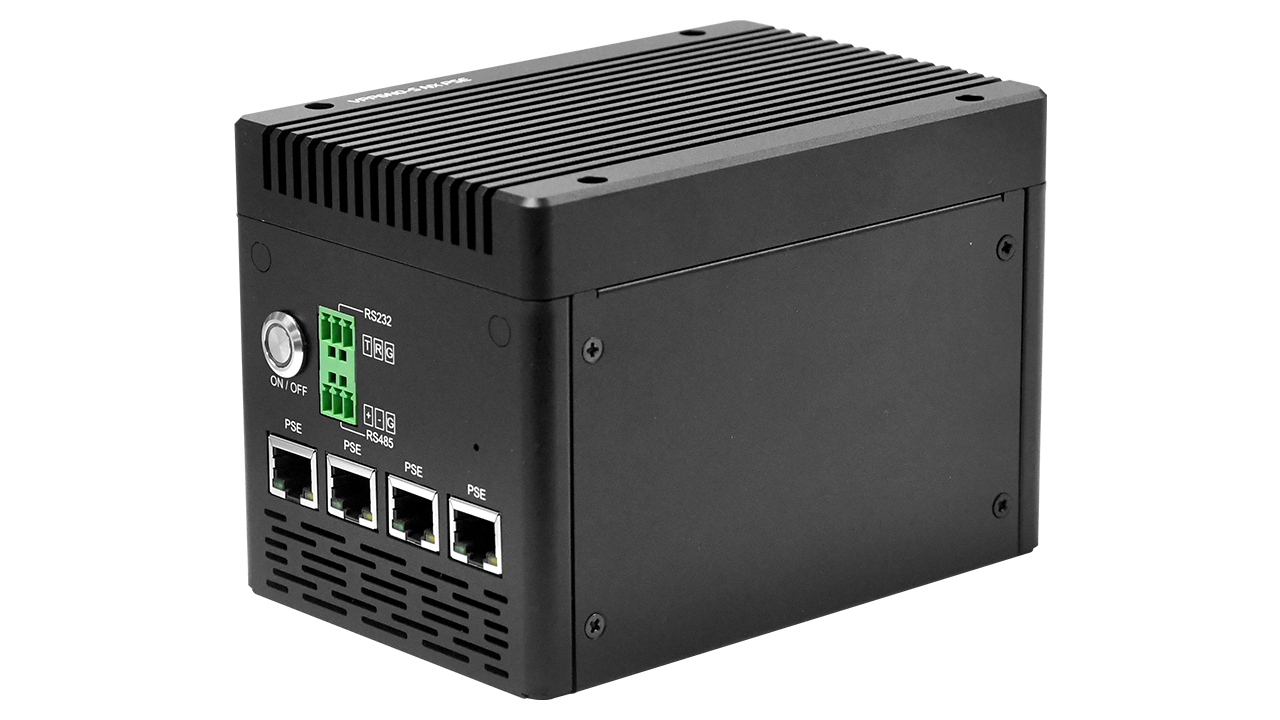

VPP6N0-S NX PSE
4×PSE for IP Camera & Edge AI
Features
- Powered by NVIDIA® Jetson Orin™ NX Super up to 157 TOPS
- 4×PSE for IP Camera ( 4×15W )
- 2×M2 M Key, Gen 4×4 / Gen 4×1
- Fanless Design
- 4×USB3.2 Gen2
- RS232 / RS485 / I2C
| System | |
|---|---|
|
CPU |
NVIDIA® Jetson Orin™ NX 8GB Super 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 NVIDIA® Jetson Orin™ NX 16GB Super 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 |
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores |
| AI Performance |
NVIDIA® Jetson Orin™ NX 8GB 117 TOPS NVIDIA® Jetson Orin™ NX 16GB 157 TOPS |
|
System Memory |
NVIDIA® Jetson Orin™ NX 8GB 8GB LPDDR5 NVIDIA® Jetson Orin™ NX 16GB 16GB LPDDR5 |

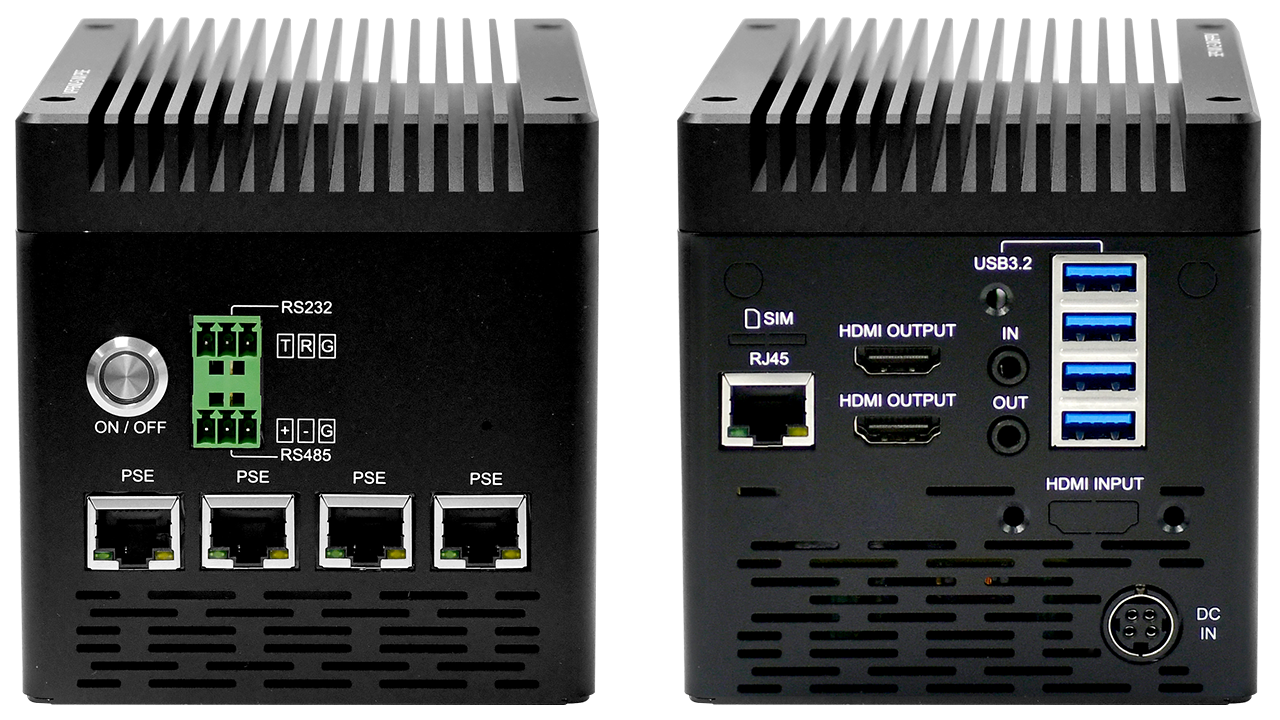

| Interface | |
| Storage | Supports External NVMe |
| Display Interface | 2×HDMI2.0 |
| Ethernet | 1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Expansion Slot |
M.2 1×M.2 2280/3080 M Key PCIe Gen4×4 Slot 1×M.2 2280 M Key PCIe Gen4×1 Slot |
|
USB |
4×USB3.2 Gen2 ( Type-A ) 2×USB3.2 Gen1 ( Pin Header ) |
|
MIPI |
2×4MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card ) |
| Audio | 1×Line In ( 3.5mm or Pin Header ) 1×Line Out ( 3.5mm or Pin Header ) |
| Peripheral Communication | 1×RS232 ( Phoenix Connector or Pin Header ) 1×RS485 ( Phoenix Connector or Pin Header ) 4×GPIO ( Pin Header ) 3×I2C ( Pin Header ) |
|
Audio |
Firmware Upgradable AutoPower ( Pin Header ) |

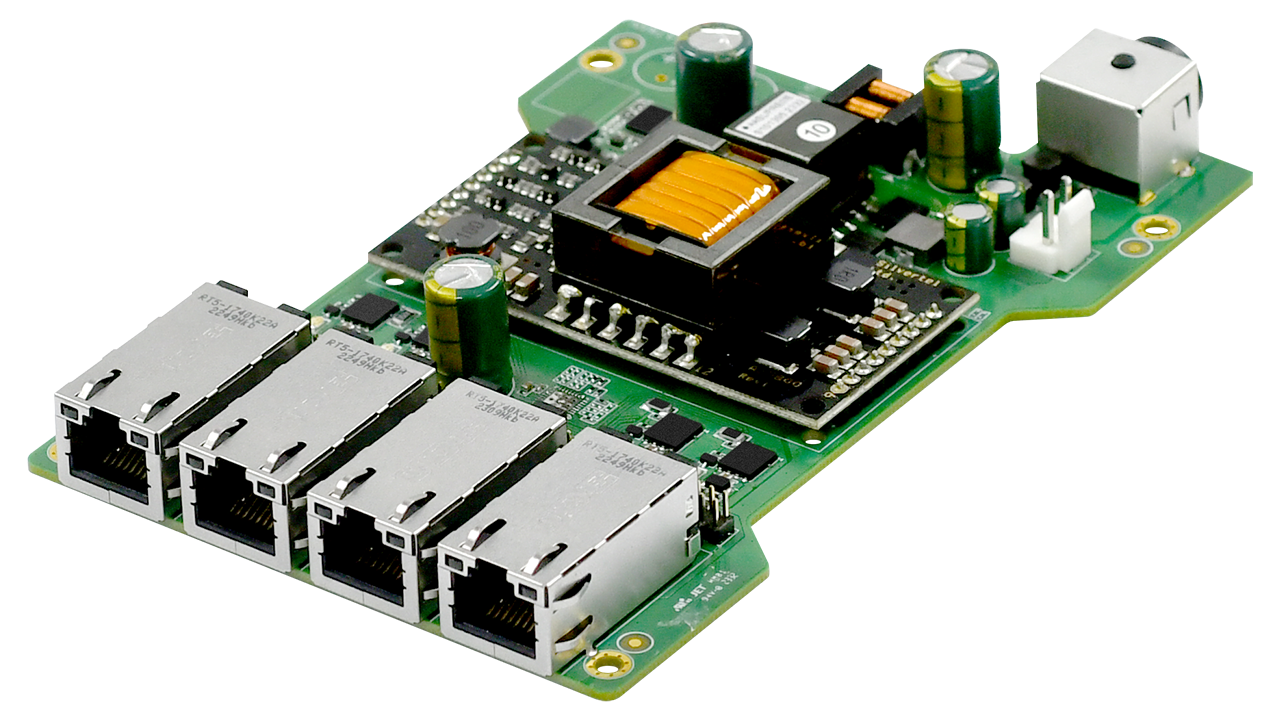

| PSE Feature | |
|
IP Camera |
4×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af and IEEE802.3at Compliant |
| PSE Power Supply | 4×15W ( IEEE802.3af ) or 4×30W ( IEEE802.3at ) |
| Capture Card Suggestion |
|---|
