Dante AV Ultra to HDMI2.0
Receive 4K60 Image with Low Latency

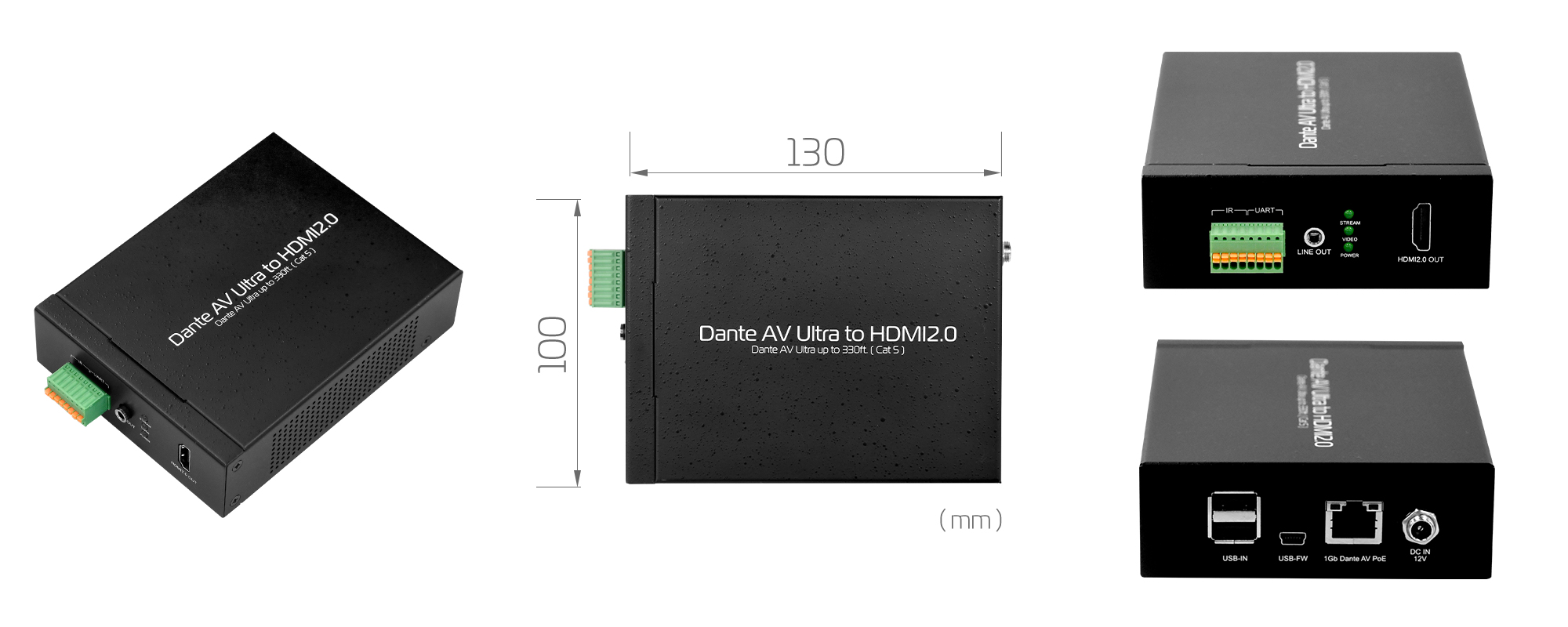

![Dante AV Ultra to HDMI2.0](/keeper/images///QVYtT3Zlci1JUA/RGFudGU/UHJvZHVjdHMgTGF5ZXIgNCAtIFNwZWM/RGFudGUgQVYgVWx0cmE/RGFudGUgQVYgVWx0cmEgdG8gSERNSTIuMCBDb3Zlcg.png)
Model Name | Dante AV Ultra to HDMI2.0 |
Max. FPS | 4096×2160p@60/50fps |
Recording Mode | Hardware Compression |
CPU | N/C |
5G Support | N/A |
A/V Input Interfaces |
Video RJ45×1(For Dante AV Ultra input) |
A/V Output Interface |
Converted Video HDMI 2.0×1 Audio 3.5mm Phone Jack×1 for L/R Audio |
Video Feature |
Dante AV Ultra 4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/50fps 3840x2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
Video Encode | N/C |
Audio Feature |
Input Audio Stream: Dante AV Ultra : 8 Channels, 24bit, 32~192KHz Output Audio Stream: HDMI : 8 Channels, 24bit, 32~192KHz 3.5mm Phone Jack : 2 Channels, 24bit, 48KHz |
Network Feature |
1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
Support Streaming protocol | Dante AV Ultra |
Misc. Features |
2×USB 2.0 (For Keyboard and mouse usage) Web UI for System Configuration Firmware Upgradable LED Indicator |
PGM mode switch | N/C |
Support Record Device | N/C |
SDK Support | N/C |
AI Features | N/C |
Record Format | N/A |
Power Supply |
7.5V ~ 15V Support POE input |
