EYE6N0-S08M678R

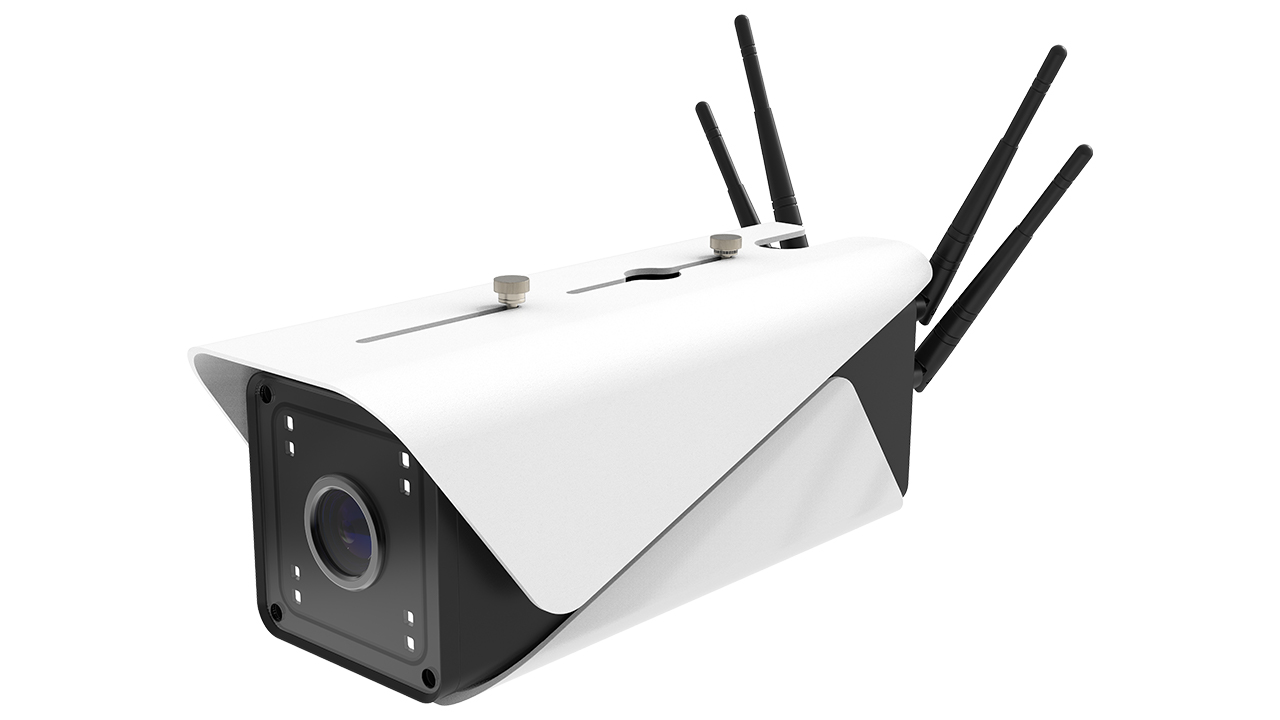

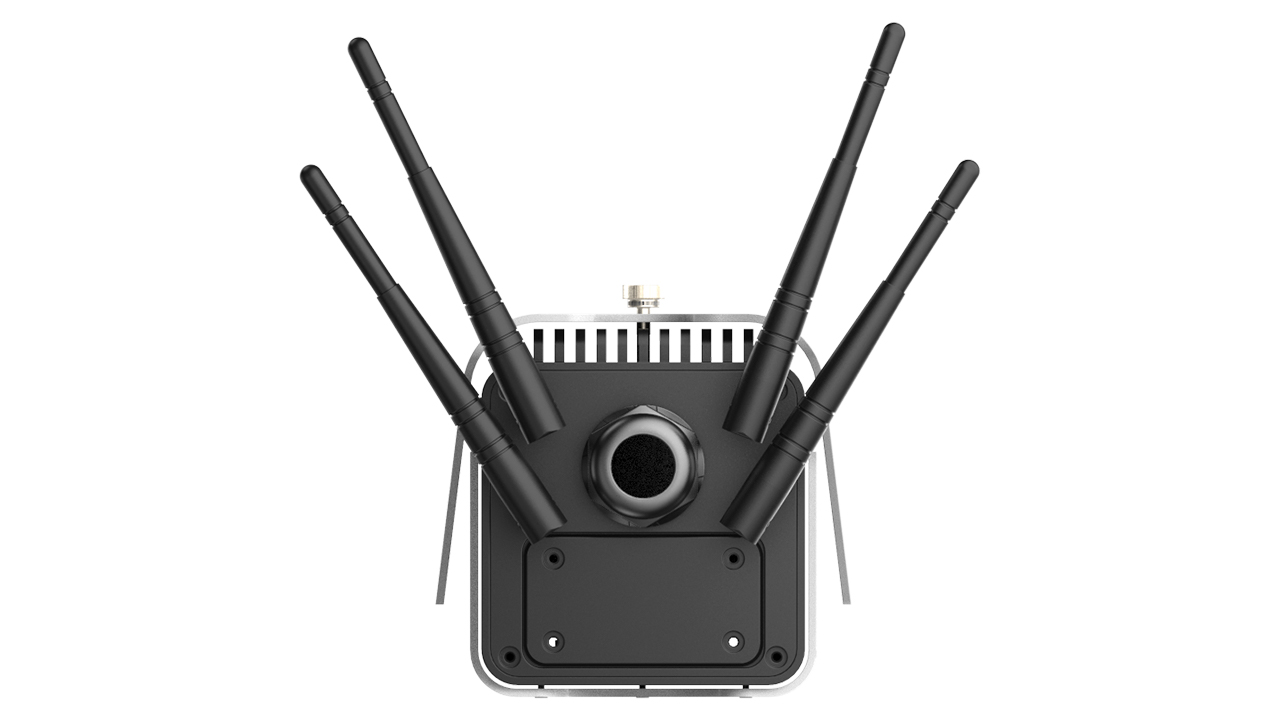

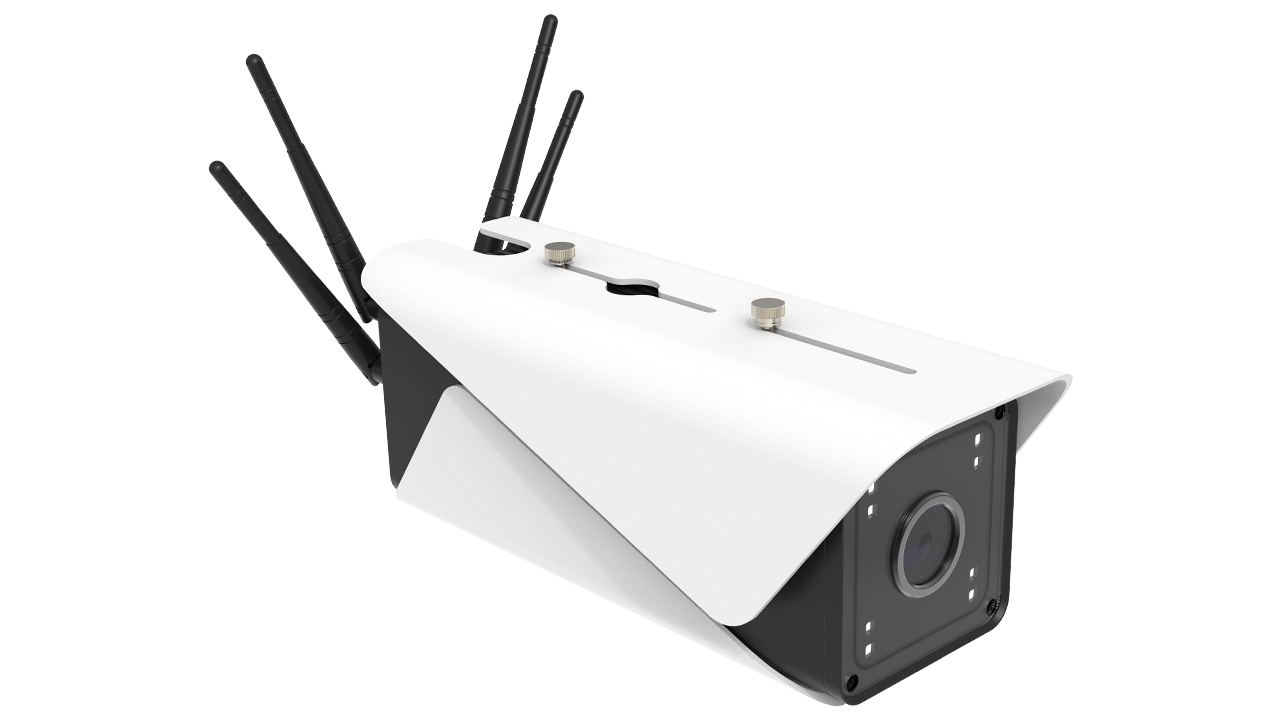

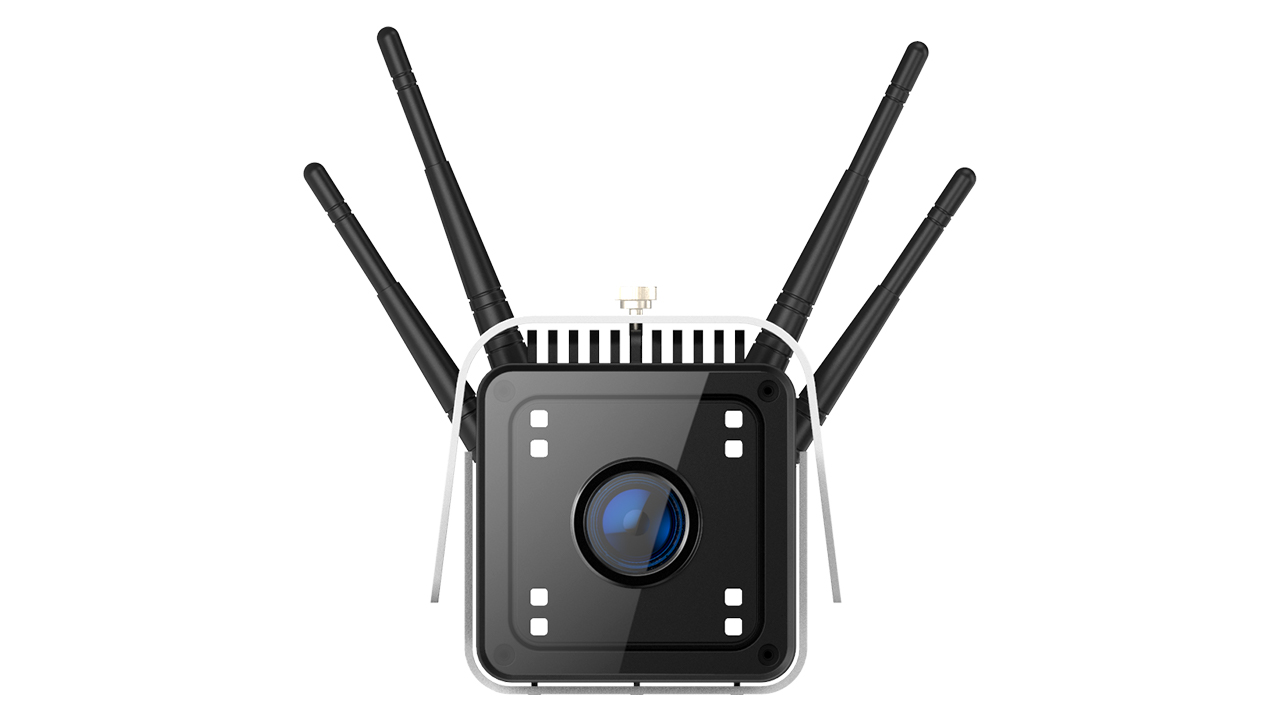

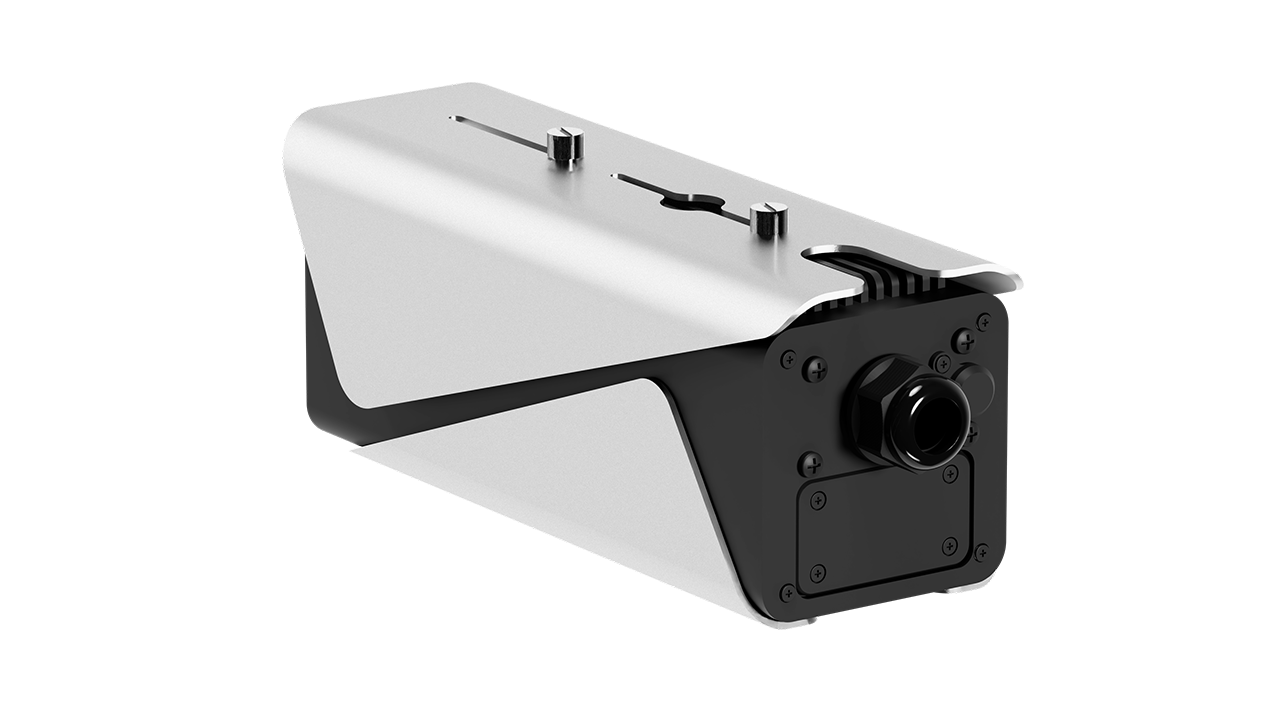

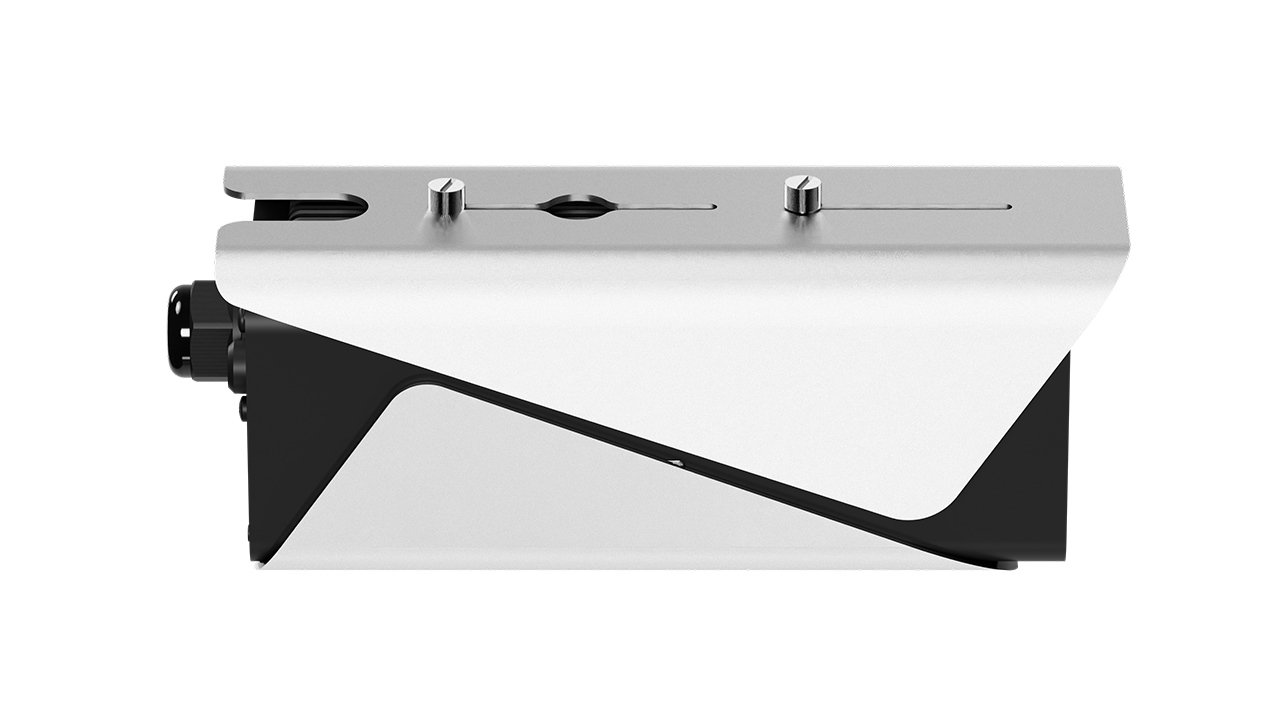

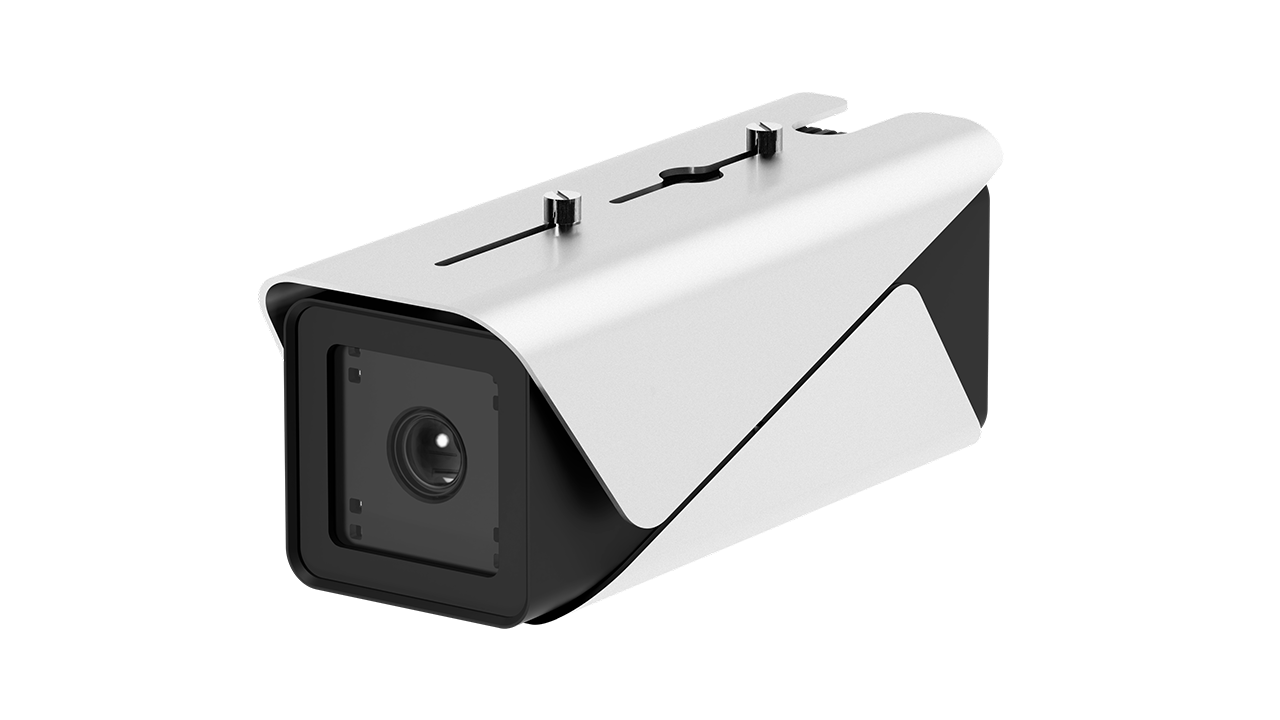

Smart City Camera

Features

  • 4K60 HDR/WDR smart camera with video AI processing capability powered by NVIDIA® Jetson Orin™ NX
  • Up to 100 TOPS AI performance, supports multiple AI models and Generative AI
  • Hardware ISP design without CPU/GPU Loading
  • Lens support auto-focus and auto-IRIS
  • DMA PCIe design high-bandwidth capture, providing RGB444 image quality
  • IP66 waterproof rating withstand outdoor tolerance within temperature from -20~50 ℃


Datasheet Get a quote
System
CPU

NVIDIA® Jetson Orin™ NX 8GB
6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
1.5MB L2 + 4MB L3

NVIDIA® Jetson Orin™ NX 16GB
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance

NVIDIA® Jetson Orin™ NX 8GB
70 TOPS

NVIDIA® Jetson Orin™ NX 16GB
100 TOPS
System Memory

NVIDIA® Jetson Orin™ NX 8GB
8GB LPDDR5

NVIDIA® Jetson Orin™ NX 16GB
16GB LPDDR5
Interface
Storage Supports External NVMe
Ethernet Wi-Fi 6
Wireless 1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot M.2
1×M.2 2230 M Key PCIe Gen4×2 Slot
1×M.2 2230 E Key PCIe Gen4×1 Slot
USB 1×USB3.2 Gen2 ( Type-C )
Peripheral
Communication		 1×UART(*)
2×GPIO(*)
*: Please select either 1×UART or 2×GPIO to use
