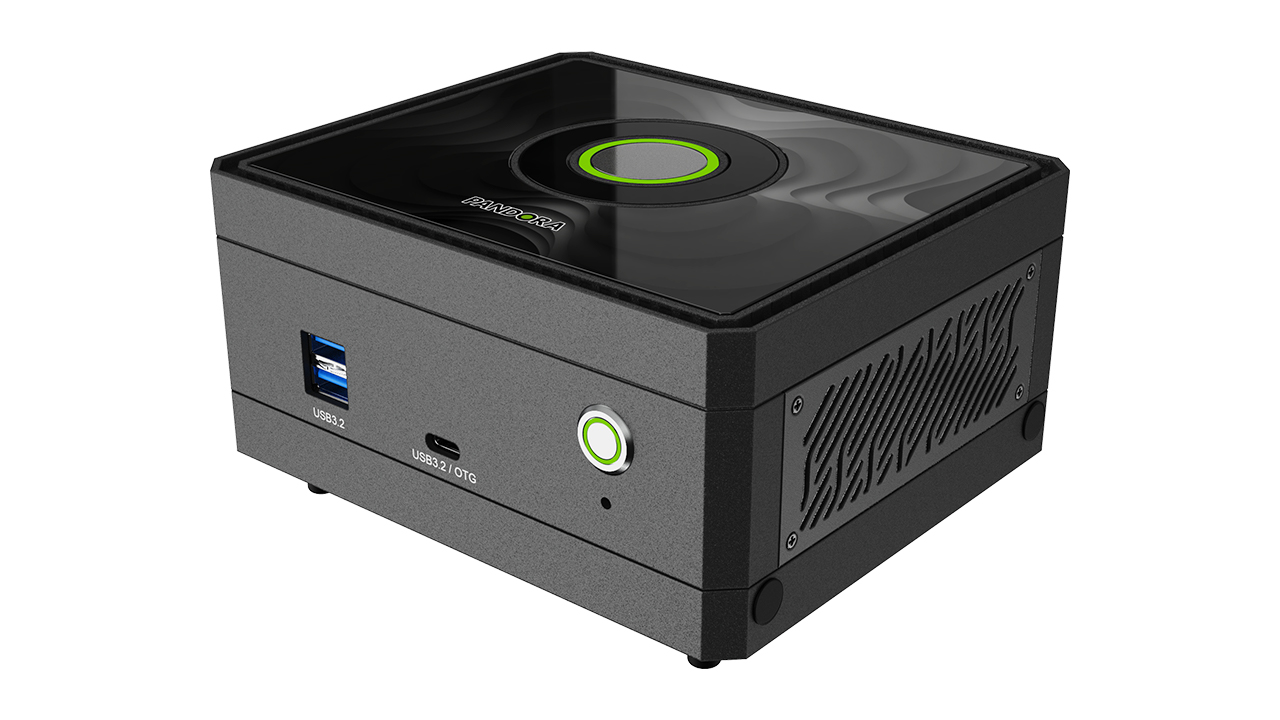

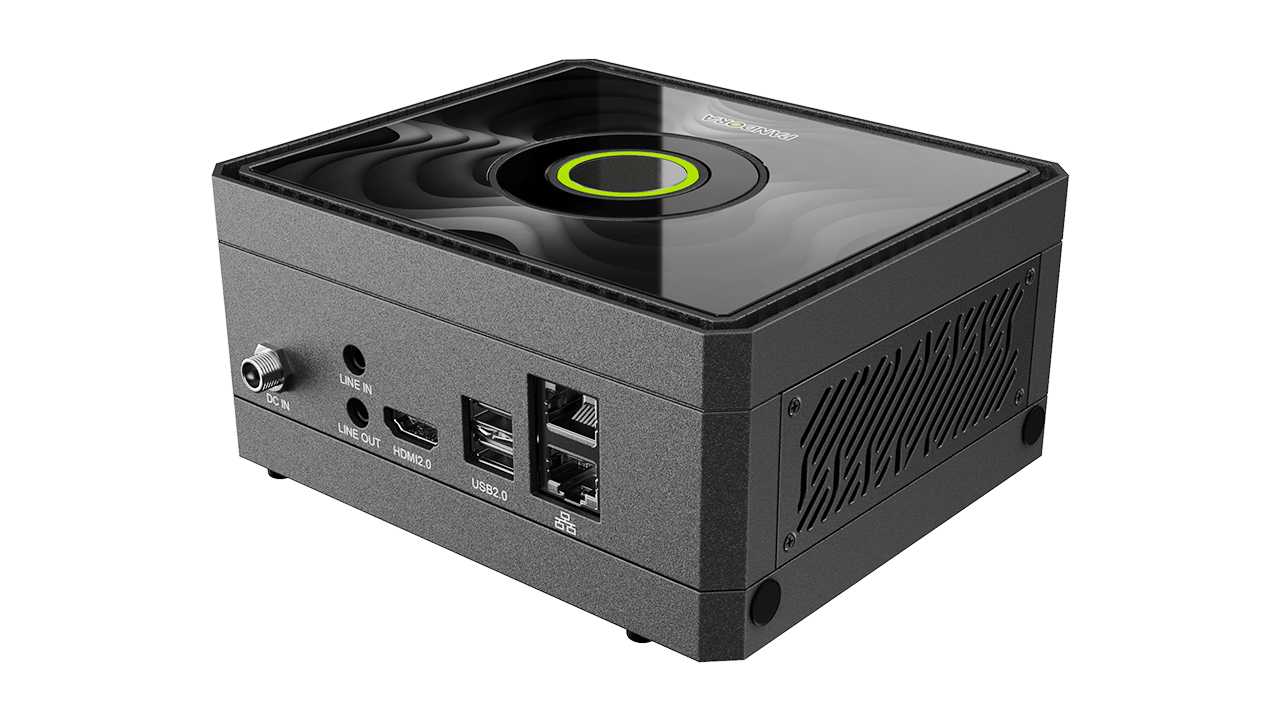

Pandora Nano 4GB Super

Compact Edge AI

Features

Powered by NVIDIA^® Jetson Orin™ Nano 4GB Super up to 34 TOPS
Compact Size: 145mm×123mm×66mm
4×M.2, 8 Lanes MIPI CSI-2, and I2C / UART / GPIO / CAN Bus
2×USB3.2 Gen2, 2×USB2.0, 1×Nano SIM Card Slot
1×HDMI2.0

Datasheet Get a quote

System
SOM Module	NVIDIA^® Jetson Orin™ Nano 4GB Super
CPU	6-Core Arm^® Cortex^®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3
GPU	512-Core NVIDIA Ampere Architecture GPU with 16 Tensor Cores
AI Performance	34 TOPS
System Memory	4GB 64-bit LPDDR5 51GB/s
Interface
Storage	Supports External NVMe
Display Interface	1×HDMI2.0
Ethernet	2×RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot	1×M.2 2280 M Key PCIe Gen3×2 Slot ( with Pre-Installed 128GB SSD ) 1×M.2 2280/3080 M Key PCIe Gen3×4 Slot, Support SSD or Video Capture Cards 1×M.2 2230 E Key PCIe Gen3×1+USB2.0 Slot, Support WiFi Module. 1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module
USB	2×USB3.2 Gen2 ( Type-A ) 1×USB3.2 Gen2 ( Type-C ) ( OTG ) 2×USB2.0 ( Type-A )
MIPI	8-Lane MIPI CSI-2 ( D-PHY 2.1, Support MIPI Camera, Capture Card )
Audio	1×Line In ( 3.5mm Phone Jack ) 1×Line Out ( 3.5mm Phone Jack )
Perherial Communication	40 Pin Header 1×I2S 2×I2C 2×SPI 1×UART 3×GPIO 14 Pin Header 1×CAN Bus 1×UART with CTS/RTS 1×UART for Debug 1×Nano SIM Card Slot
Misc. Features	Firmware Upgradable TPM Module ( Optional )
Video Feature
Video Encode	NVIDIA^® Jetson Orin™ Nano Super : 1080p30 supported by 1-2 CPU cores
Video Decode	NVIDIA^® Jetson Orin™ Nano Super : AV1 ( Main Profile ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 10×1080p30 H.265 ( Main, Main10 ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30 H.264 ( Baseline, Main, High ) 1×4K30 \| 3×1080p60 \| 7×1080p30 VP9 ( Profile 0, Profile 2 ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30
Development Environment
JetPack	6.2 or Higher
Environment
Power Supply	DC input : 9~36V
Power Consumption	Max : 27W
Operating Temperature	Standard Version : 0~60℃ with Airflow
Storage Temperature	-20~80℃
