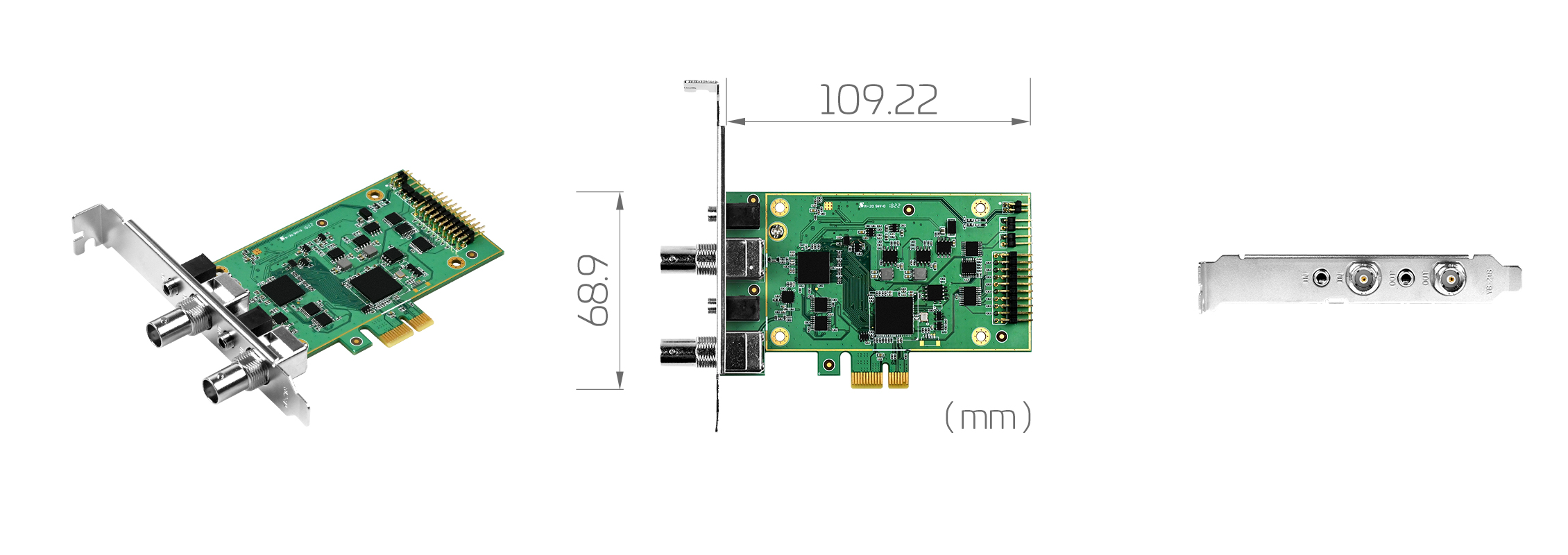

SC550N1-L SDI
1 CH 1080P60 SDI
| Max. Input Resolution | 1920×1080p@60/50fps in → 1920×1080p@60/50fps out |
| Video Input | 1×SDI |

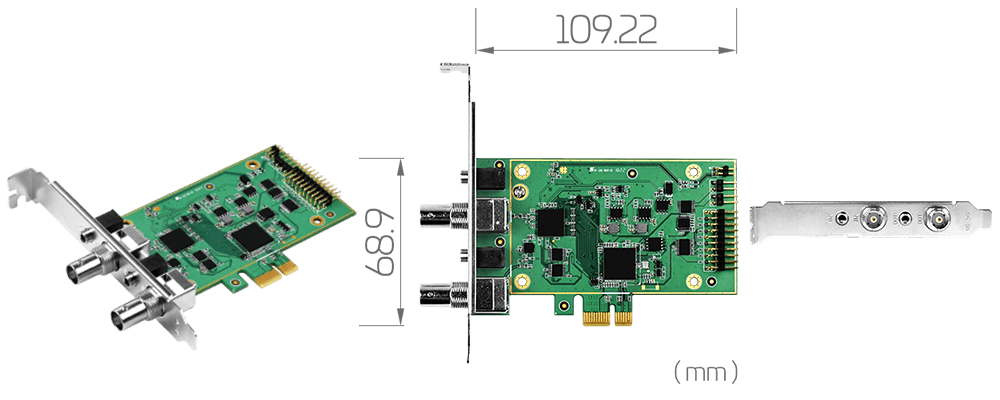

| Dimension | 109.22×68.9 ( mm ) |
| Interface | PCIe×1 ( Gen1 ) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 1×SDI |
| Video Output |
1×SDI ( Loop-Through ) |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
| Audio Input | 1×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | 16 |
| WatchDog | ✓ |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
