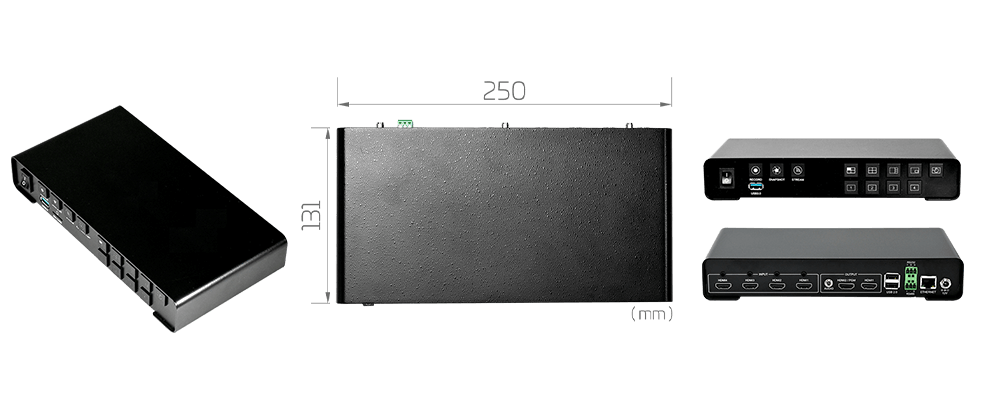

SC6D0N4 HDMI
4CH HDMI 1080P60 ENCODER+DECODER+SWITCH
| Model Name | SC6D0N4 HDMI |
| Max. FPS | 1920×1080p@300fps(4 HDMI + 1 PGM Channels) |
| Recording Mode | Hardware Compression |
| CPU | N/A |
| A/V Input Interfaces |
Video 4×HDMI Audio 4×3.5mm |
| A/V Output Interface |
Video 1×HDMI ( Multiview / PGM ) 1×HDMI ( PGM ) Audio 1×3.5mm |
| Video Feature |
H.264/AVC, Baseline/Main/High Profile Configurable Bit Rate Up to 64Mbps Support input resolutions 1920×1080 ( P60/P50/P30/P25/P24/i60/i50 ) 1280×720 ( P60/P50), 1280×1024 ( P60 ), 1280×960 ( P60 ) 1024×768 ( P60 ), 800×600 ( P60 ), 720×480 ( P60/i60 ) 640×480 ( P60 ), 720×576 ( P50/i50 ) Support output resolutions Resize Range from 160×120 to 1920×1080 ( P60 ) |
| Video Encode | N/A |
| Audio Feature |
AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate : 48KHz, 16bit |
| Network Feature |
1×RJ45 for 10/100/1000Mbps Ethernet Expandable internet interface on board DHCP client |
| Support Streaming protocol |
NDI Support ( Separate License with NDI Required ) RTSP over UDP/TCP/Multicast/HTTP RTMP ( Publish ) TS over IP HLS |
| Misc. Features |
Web UI for system configuration Firmware upgradable LED indicator Status with Power Recycle 2×USB2.0 (For Keyboard and mouse usage) 1×USB3.0 (For external storage usage) 1×RS232 + 1×RS485/RS232 Main function switch Record Snapshot Stream PGM mode switch Full screen Quadview Picture by picture Picture in picture PGM Loop Full screen switch Channel 1 Channel 2 Channel 3 Channel 4 |
| PGM mode switch | N/A |
| Support Record Device | N/A |
| SDK Support | N/A |
| AI Features | N/A |
| Record Format | MP4 / TS / MOV |
| Power Supply | DC input : 12V / 2A |
