SC5A0N4 SDI

4 CH 1080P30 SDI with Hardware Encode

SC5A0N4 SDI
Max. Input Resolution 1920×1080p@60/50fps in → 1920×1080p@30/25fps out
Video Input 4×SDI

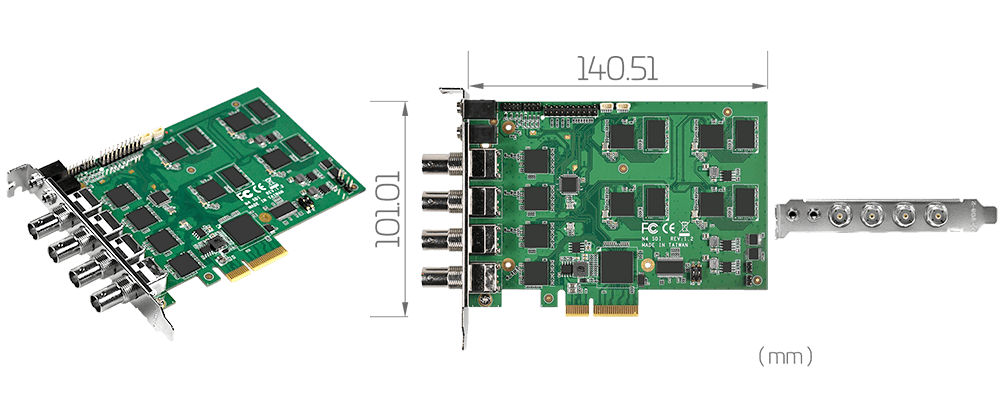

Dimension 140.51×101.01 ( mm )
Interface PCIe×4 ( Gen2 )
Feature Multi Instances
Multi Devices
Video Input Detail 4×SDI
Video Output N/A
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
Build-in Hardware Encode H.264
Video Processing Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions 3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps
Audio Input 4×Stereo Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
GPIO 16
WatchDog V
Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting

※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
