SC5A0N1-L HDV

1 CH 1080P30 AIO with Hardware Encode

SC5A0N1-L HDV
Max. Input Resolution 1920×1080p@60/50fps in → 1920×1080p@30/25fps out
Video Input 1×DVI-I, 1×YPbPr, 1×S-Video, 1×CVBS

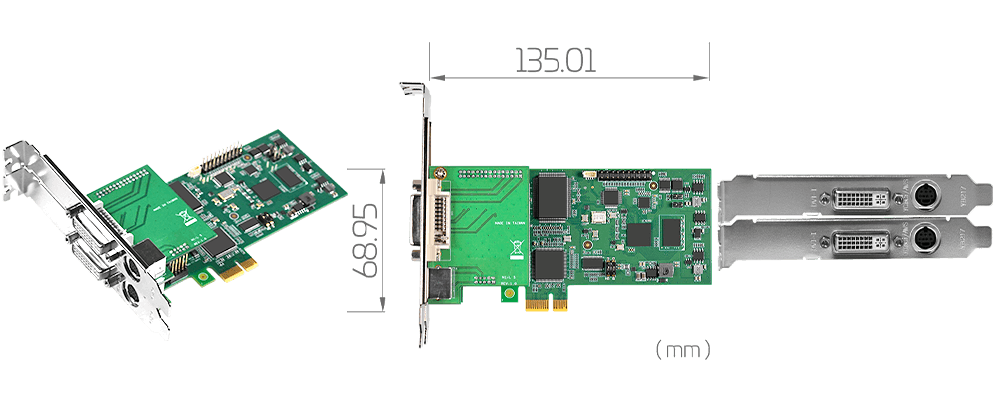

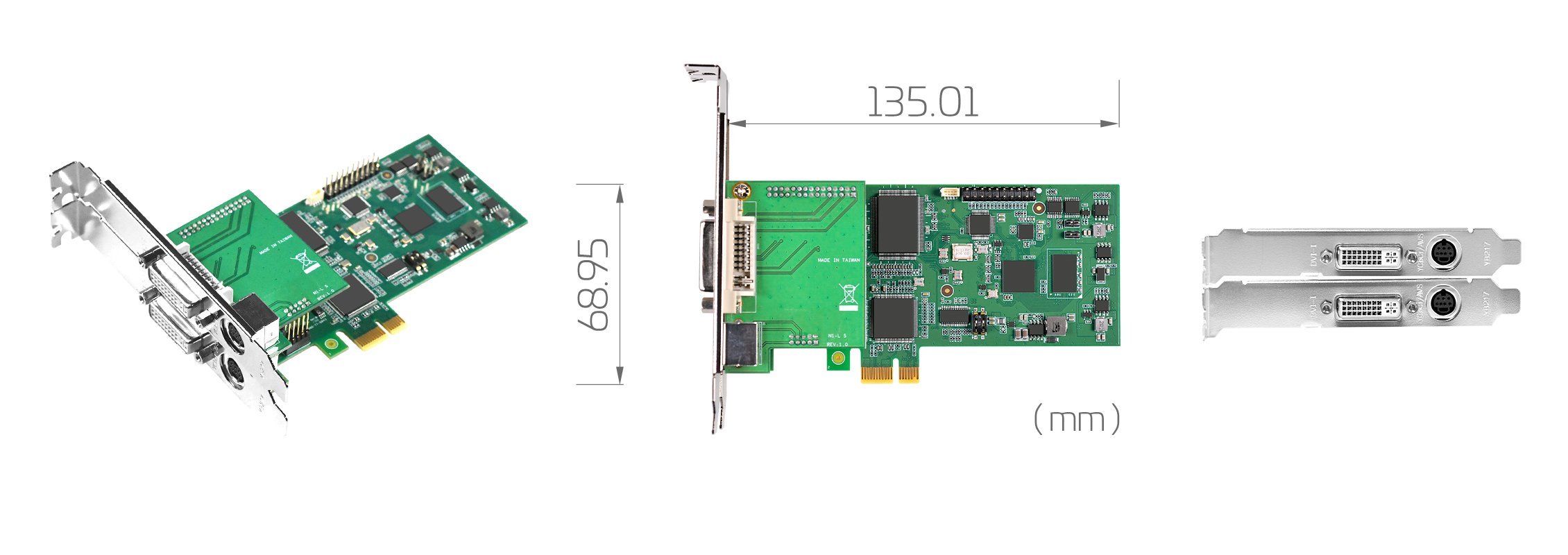

Dimension 135.01×68.95 ( mm )
Interface PCIe×1 ( Gen1 )
Feature Multi Instances
Multi Devices
Video Input Detail 1×DVI-I, 1×YPbPr, 1×S-Video, 1×CVBS
Video Output 1×DVI-I, 1×YPbPr, 1×S-Video, 1×CVBS
( Loop-Through )
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
Build-in Hardware Encode H.264
Video Processing Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions HDMI, DVI :
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

✻ More resolution supported by SDK


CVBS, S-Video
720×480i@60fps
720×576i@50fps

YPbPr
1920×1080p@60/50fps
1920×1080i@60/50fps
1280×720p@60/50fps
720×480p@60fps
720×576p@50fps
Audio Input 1×Stereo Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
GPIO 16
WatchDog V
Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting

※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
