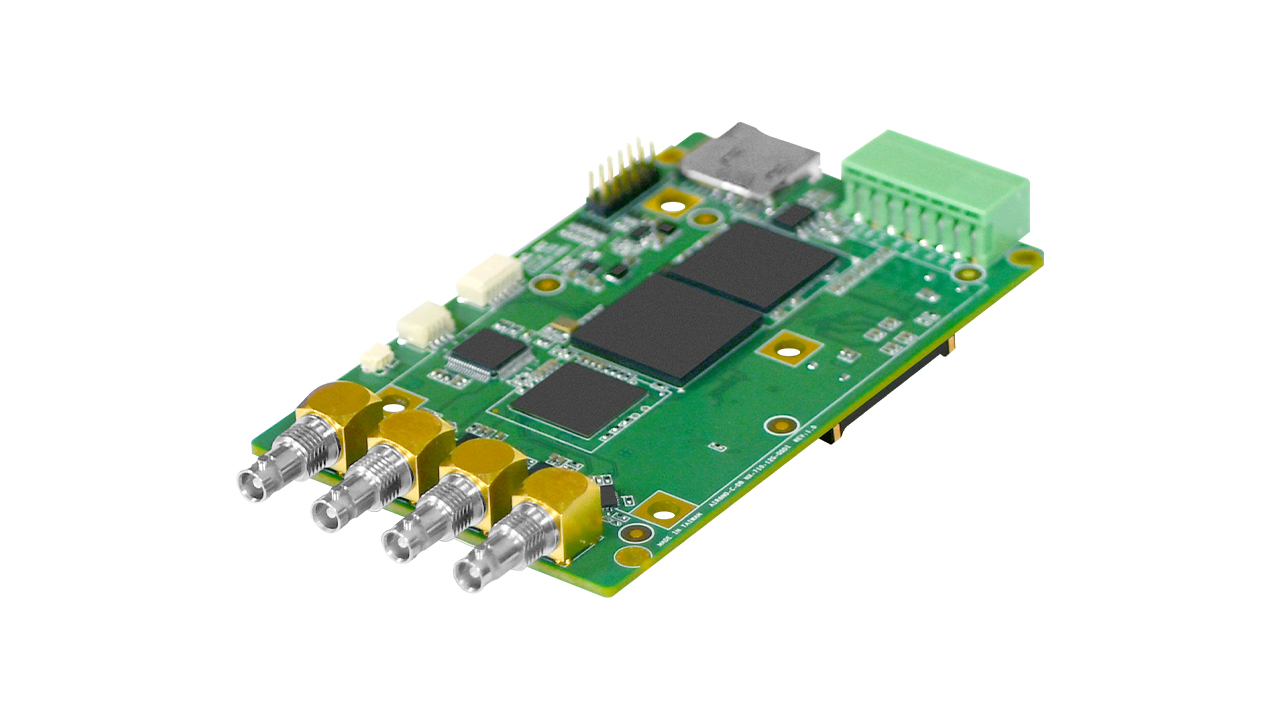

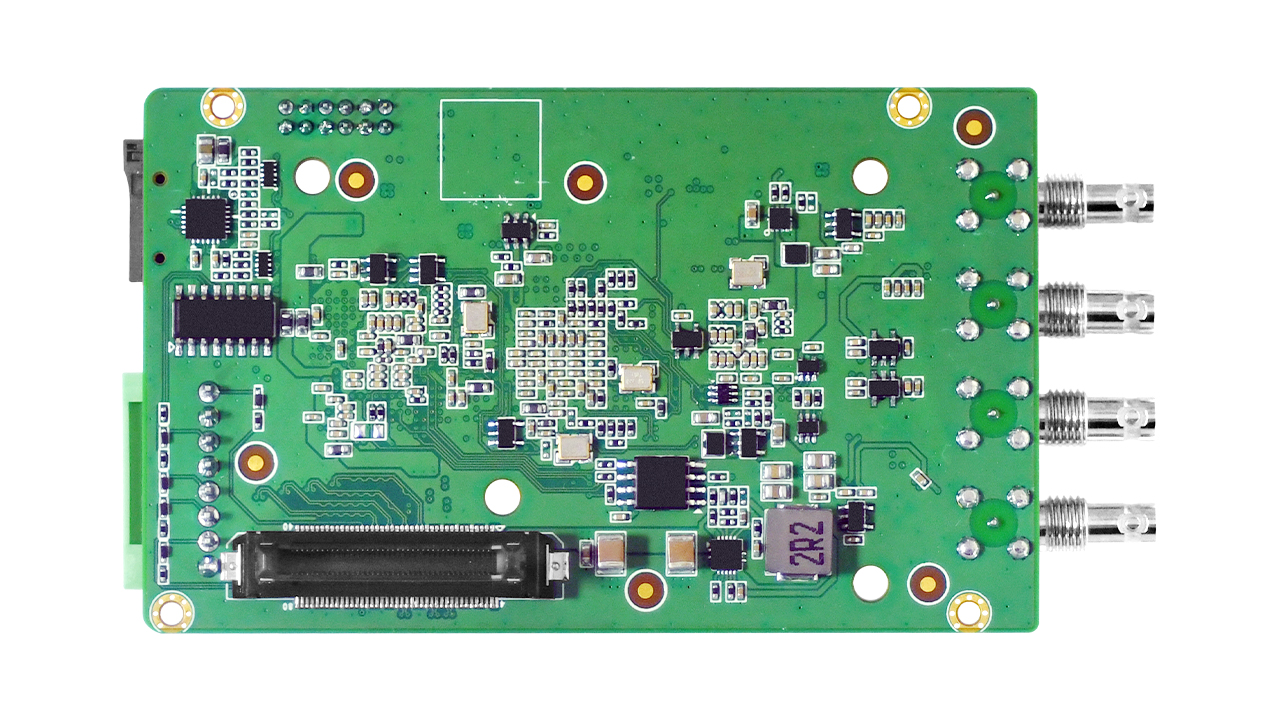

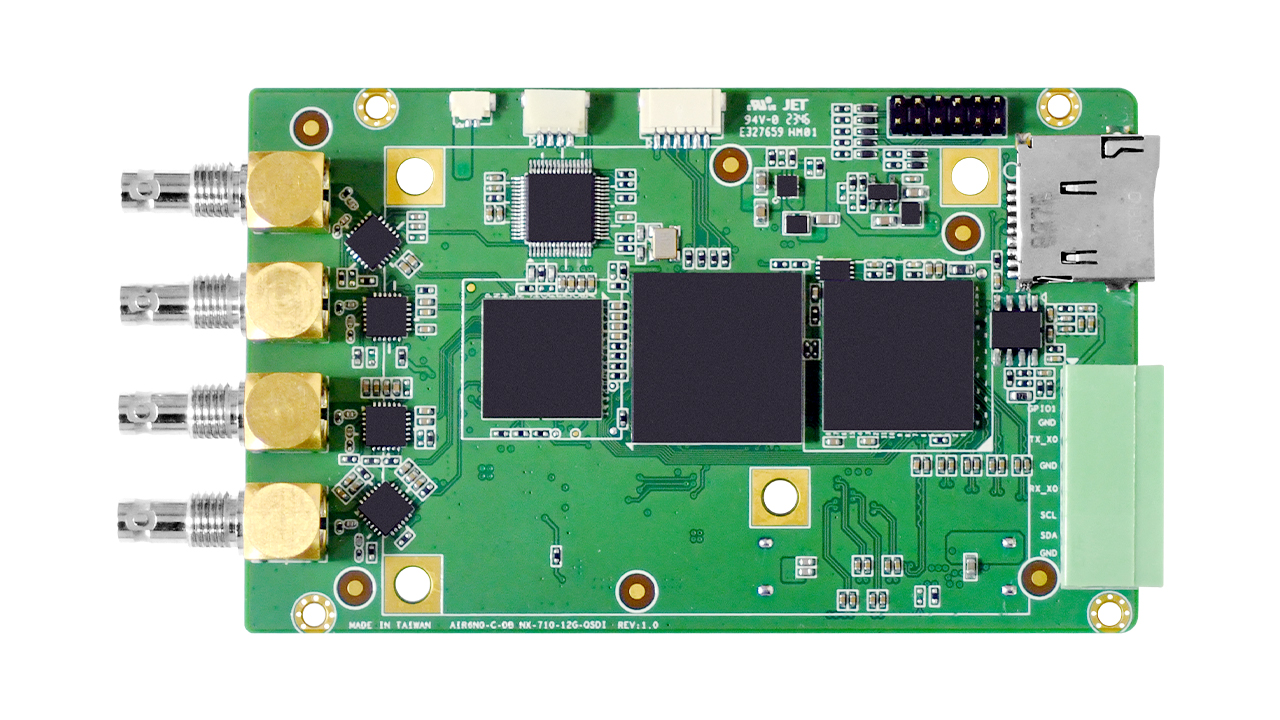

AIR6N0-C-DB NX 12G-SDI QL

AI Edge for 12G-SDI, 1×4K60 / 2×4K30 / 4×HD60

Features

  • Business Card Size
  • 1×12G-SDI | 2×6G-SDI | 4×3G-SDI In
  • Single-Link, Dual-Link, Quad-Link Support

Interface
Peripheral Communication 8 Pin Phoenix Connector
1×GPIO
1×RS232 (*)
1×I2C

2×6 Pin Header
3×GPIO
1×RS485
1×I2C

* Please select either RS232 of 8 Pin Phoenix Connector or UART of 6 Pin Wafer to use
Storage 1×Micro SD Card Slot
Video Capture Resolutions

Single Channel Mode :
Single Link/Dual Link/Quad Link

12G-SDI :
4096×2160@60/50fps
3840×2160@60/50fps

6G-SDI :
4096×2160@30/25/24fps
3840×2160@30/25/24fps

3G-SDI :
1920×1080p@60/50fps

HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI :
720×480i@60fps
720×576i@50fps


Multi Channel Mode :
Single Link

2×6G-SDI :
4096×2160@30/25/24fps
3840×2160@30/25/24fps

4×3G-SDI :
1920×1080p@60/50fps

4×HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

4×SD-SDI :
720×480i@60fps
720×576i@50fps
Misc. Features

Firmware Upgradable

Development Environment
JetPack 6.2 or Higher
Environment
Power Consumption TBA
Operating Temperature 0~6 0 ℃ with Airflow
Storage Temperature -20~80 ℃
Certification CE, FCC
