SC350N16
16 CH CVBS
| Max. Input Resolution | 960×480@30fps or 960×576@25fps |
| Video Input | 16×Composite |

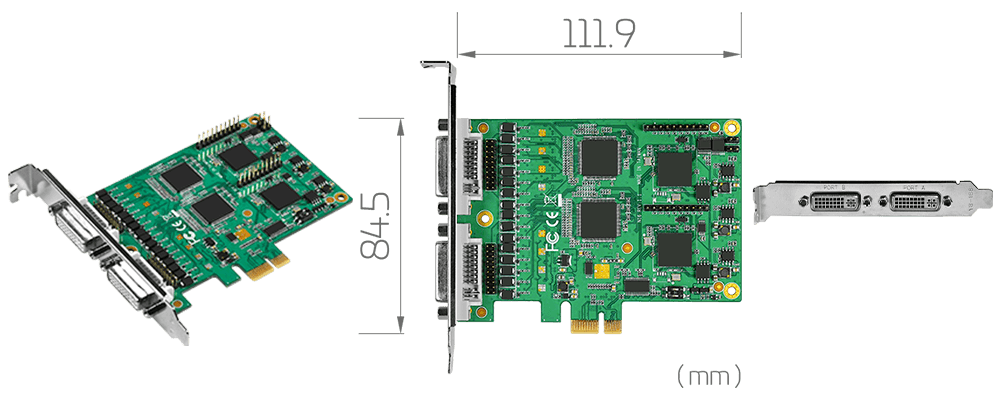

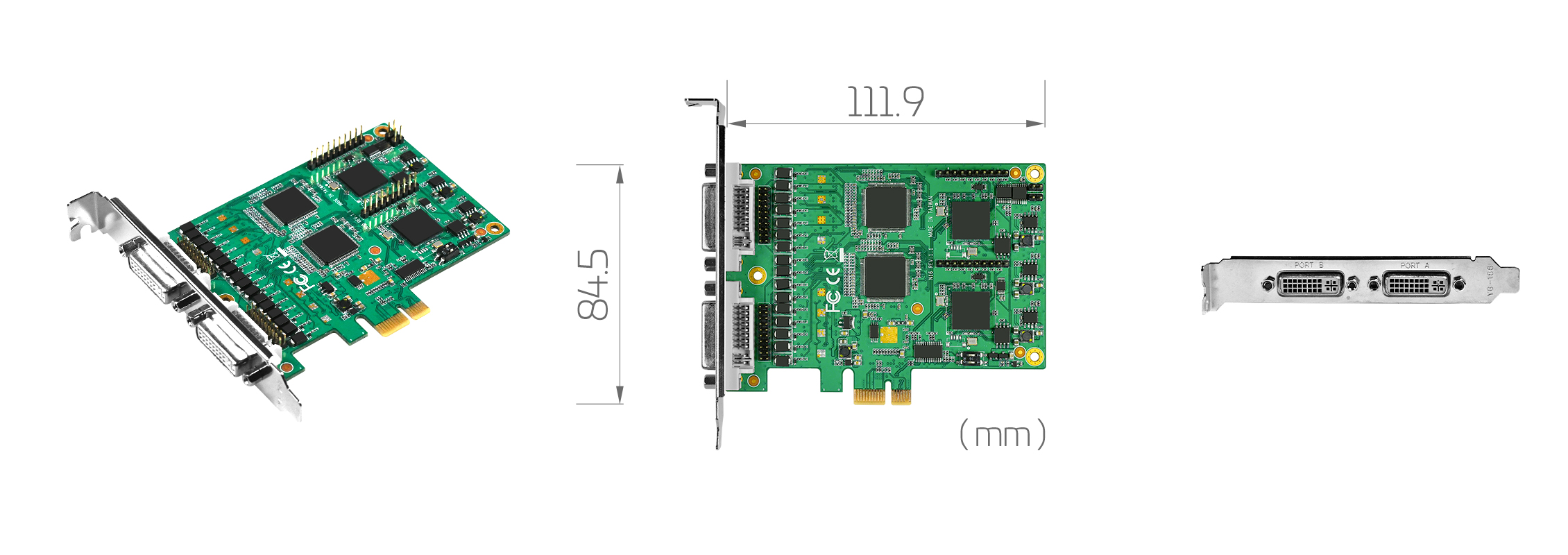

| Dimension | 111.9×84.5 ( mm ) |
| Interface | PCIe×1 |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | N/A |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
NTSC 960×480@29.97fps ( WD1 ) 720×480@29.97fps ( D1 ) PAL 960×576@25fps ( WD1 ) 720×576@25fps ( D1 ) |
| Audio Input | 16×RCA |
| Audio Format | Mono / 16-Bit / 48000Hz |
| GPIO | 16 |
| WatchDog | V |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
