SC300N1-L
1 CH AV/S
| Max. Input Resolution | 30/25fps@D1 |
| Video Input | 1×Composite, 1×S-Video |

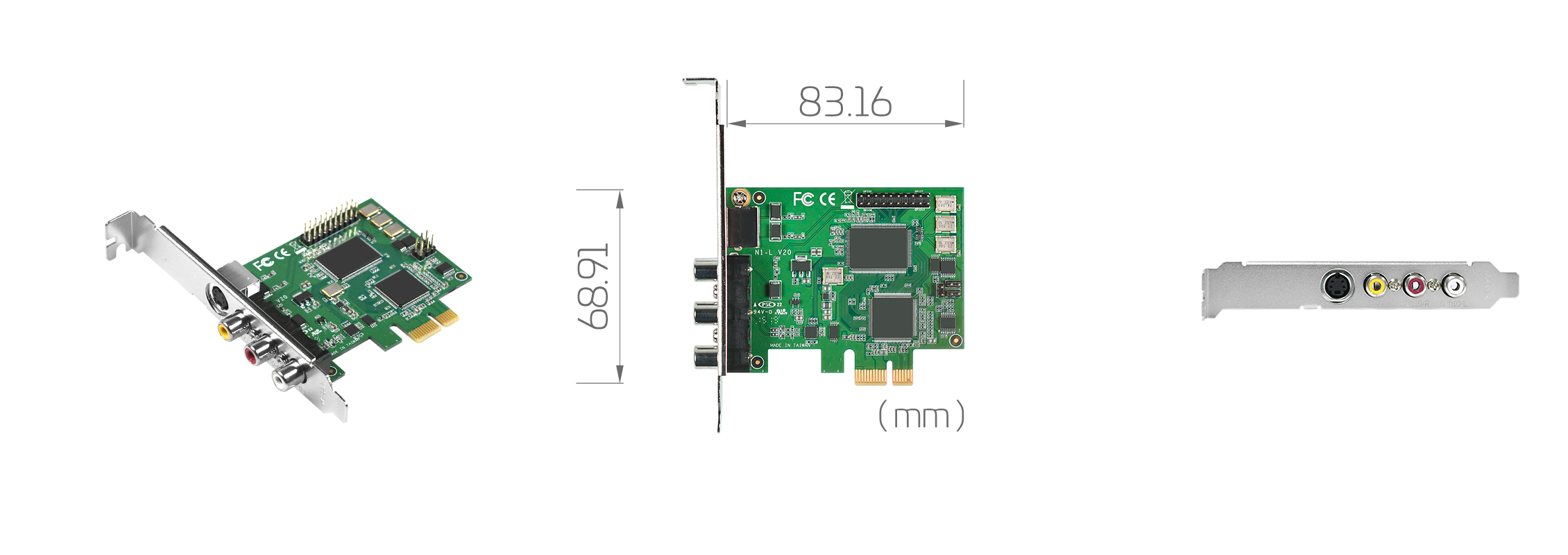

| Dimension | 83.16×68.91 ( mm ) |
| Interface | PCIe×1 |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | N/A |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
NTSC 720×480@30fps 704×480@30fps 640×480@30fps 720×240@30fps 704×240@30fps 640×240@30fps 360×240@30fps 352×240@30fps 320×240@30fps PAL 720×576@25fps 704×576@25fps 640×576@25fps 720×288@25fps 704×288@25fps 640×288@25fps 360×288@25fps 352×288@25fps 320×288@25fps |
| Audio Input | 2×RCA ( Audio L/R ) |
| Audio Format | Stereo / 16-Bit / 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
