HDMI2.0 to SDVoE V2
1CH HDMI2.0 Transmitter ( Copper + Fiber + PoE )
| Model Name | HDMI2.0 to SDVoE V2 |
| Description | HDMI 2.0 to SDVoE with PoE Converter |
| Feature |
PoE Supported ( Supported by 10G/1G RJ45 ) SDVoE Fiber/Copper Transfer Mode Selectable 1 RJ45 Connectors for Control Usage 1 USB interface for PC connected ( Default USB HID, USB2.0 is for Optional ) Bi-Direction Audio Transfer Supported IR Transfer Supported RS232 Transfer Supported Rugged Case |
| Input Interface |
Video HDMI 2.0×1 Audio 3.5mm Phone Jack×1 for L/R Audio |
| Output Interface |
Converted Video RJ45 or SFP+×1(For SDVoE output) Audio 3.5mm Phone Jack×1 for L/R Audio |
| Supported Video Input Format |
HDMI 2.0 4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/50fps 3840x2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format |
RJ45 or SFP+ ( Converted ) Network Packet for Video Transfer |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | ✓ |
| DC In |
7.5V ~ 15V PoE PD Supported ( Supported on 10G or 1G RJ45 Port ) |

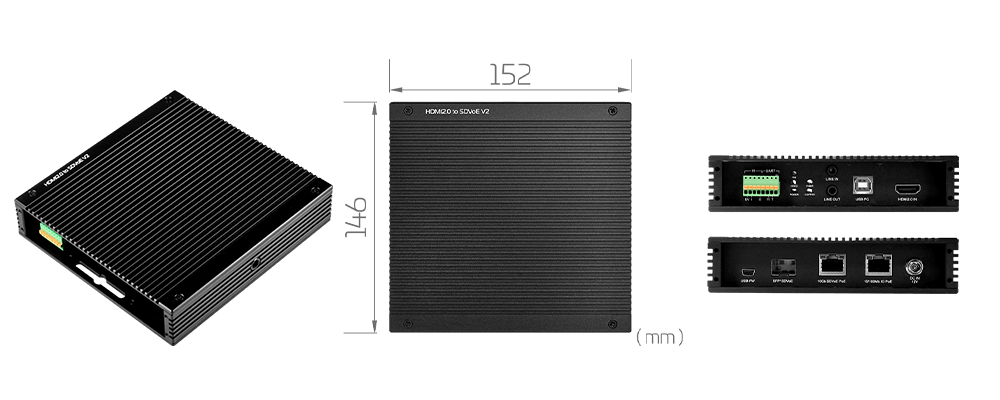

| Dimensio | L:152mm×W:146mm×H:33mm |
