H.26X and Multi to SDVoE V2

1CH HDMI2.0/H.26X Transceiver ( H.26X + Copper + Fiber + PoE )

H.26X and Multi to SDVoE V2
Model Name H.26X and Multi to SDVoE V2
Description HDMI 2.0, DisplayPort 1.2, DVI-DL, and 12G-SDI to STREAM, SDVoE, 12G-SDI and HDMI 2.0 Converter
Feature Lossless SDVoE Streaming Output
H26x Streaming Output ( Support RTMP, RTSP, SRT, TS and NDI(*) )
DisplayPort Multi-Stream Transport ( MST ) / Single Stream Transport ( SST ) Support
DVI Dual Link ( DVI-DL ) Support
Multi-Standard Support ( 12G / 6G / 3G / HD / SD-SDI )
SDI support Single Link / Dual Link / Quad Link
Quad-Link 2 Sample Interleave ( 2SI ) Input Supported
Auto Source Format Detection
1 USB Type B for PC Connected
1 USB Type A for Video Record
1 SFP+ or 1 RJ45 Connector for SDVoE Usage
1 RJ45 Connector for Control Usage
1 RJ45 Connector for STREAM Usage
Input Interface Video
HDMI 2.0×1
DP 1.2×1
DVI-DL×1
SDI-Single Link
12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
SDI-Dual Link
6G-SDI×2, 3G-SDI×2
SDI-Quad Link ( 2-SI only )
3G-SDI×4, HD-SDI×4

Audio
3.5mm Phone Jack×1 for L/R Audio
Output Interface Converted Video
12G-SDI×2
HDMI 2.0×1
SFP+×1 ( For SDVoE output )
RJ45×1 ( For SDVoE output )
RJ45×1 ( For STREAM output )

Audio
3.5mm Phone Jack×1 for L/R Audio
Supported Video Input Format SDI
12G-SDI ( Single Link / Dual Link / Quad Link )
4096×2160p@60/50fps
3840×2160p@60/50fps
6G-SDI ( Single Link / Dual Link / Quad Link )
4096×2160p@30/25/24fps
3840×2160p@30/25/24fps
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps

HDMI 2.0/DP1.2
4096×2160p@60/50fps
4096x2160p@30/25/24fps
3840×2160p@60/50fps
3840×2160p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

DVI-DL
2560×1600p@60/50fps
2560×1600p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Supported Video Output Format HDMI ( Converted )
As Input Format

SDI ( Converted, for SDI output, Please Provide Supported Resolutions as Below )
12G-SDI
4096x2160p@60/50fps
3840x2160p@60/50fps
6G-SDI
4096x2160p@30/25/24fps
3840x2160p@30/25/24fps
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps

RJ45 ( Converted )
Network Packet for Video Transfer (STREAM)

SFP+ ( Converted )
Network Packet for Video Transfer(SDVoE)
GENLOCK Frame Lock Mode N/A
Plug & Play
DC In 7.5V ~ 15V

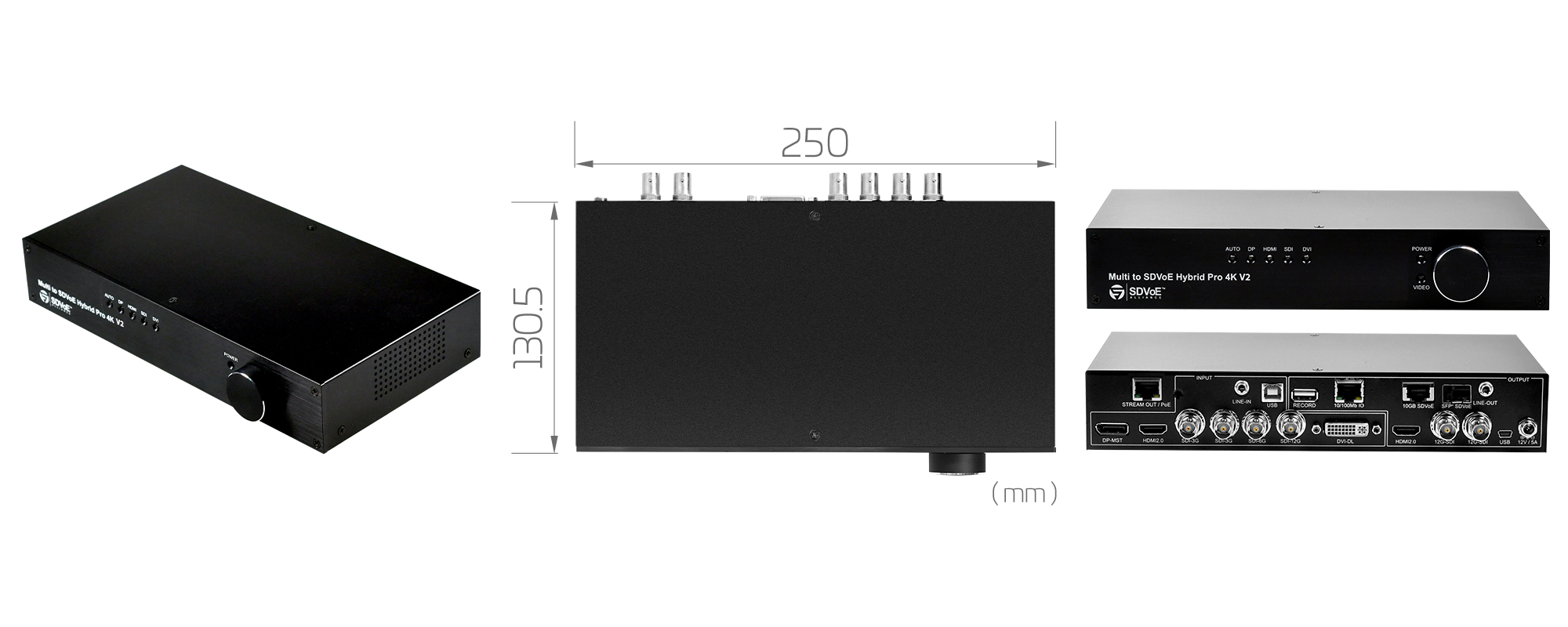

Dimensio L:250mm×W:130.5mm×H:44.2mm
