Multi to SDVoE-C
1CH 12G-SDI/HDMI2.0/DVI-DL/DP-MST Transmitter ( Fiber + PoE )
| Model Name | Multi to SDVoE-C |
| Description | HDMI 2.0, DisplayPort 1.2, DVI-DL, and 12G-SDI to SDVoE, 12G-SDI and HDMI 2.0 Converter |
| Feature |
DisplayPort Multi-Stream Transport ( MST ) / Single Stream Transport ( SST ) Support DVI Dual Link ( DVI-DL ) Support Multi-Standard Support ( 12G / 6G / 3G / HD / SD-SDI ) SDI support Single Link / Dual Link / Quad Link Quad-Link 2 Sample Interleave ( 2SI ) Input Supported Auto Source Format Detection 1 USB interface for PC connected 2 RJ45 Connectors for Video and Control Usage |
| Input Interface |
Video HDMI 2.0×1 DP 1.2×1 DVI-DL×1 SDI-Single Link 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI SDI-Dual Link 6G-SDI×2, 3G-SDI×2 SDI-Quad Link ( 2-SI only ) 3G-SDI×4, HD-SDI×4 Audio 3.5mm Phone Jack×1 for L/R Audio |
| Output Interface |
Converted Video 12G-SDI×2 HDMI 2.0×1 RJ45×1 ( For SDVoE output ) Audio 3.5mm Phone Jack×1 for L/R Audio |
| Supported Video Input Format |
SDI 12G-SDI ( Single Link / Dual Link / Quad Link ) 4096x2160p@60/50fps 3840x2160p@60/50fps 6G-SDI ( Single Link / Dual Link / Quad Link ) 4096x2160p@30/25/24fps 3840x2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps HDMI 2.0/DP1.2 4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/50fps 3840x2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps DVI-DL 2560×1600p@60/50fps 2560×1600p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format |
HDMI ( Converted ) As Input Format SDI ( Converted, for SDI output, Please Provide Supported Resolutions as Below ) 12G-SDI 4096x2160p@60/50fps 3840x2160p@60/50fps 6G-SDI 4096x2160p@30/25/24fps 3840x2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps RJ45 ( Converted ) Network Packet for Video Transfer |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

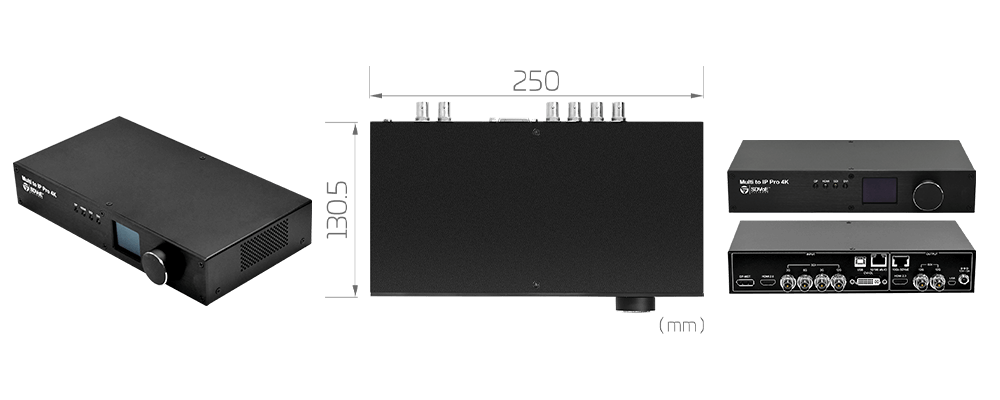

| Dimensio | L:250mm×W:130.5mm×H:44.2mm |
