SDVoE to 12G-SDI-F
1CH 12G-SDI Receiver ( Fiber )
| Model Name | SDVoE to 12G-SDI-F |
| Description | SDVoE to 12G-SDI with Audio and USB HID Converter |
| Feature |
1 USB interface for USB Devices connect 1 SFP+ Connector for Video Usage 1 RJ45 Connector for Control Usage Rugged Case Bi-Direction Audio Transfer Supported Bi-Direction IR Transfer Supported RS232 Transfer Supported |
| Input Interface |
Video SFP+×1(For SDVoE input) Audio 3.5mm Phone Jack×1 for L/R Audio |
| Output Interface |
Converted Video 12G-SDI×1 Audio 3.5mm Phone Jack×1 for L/R Audio |
| Supported Video Input Format |
SFP+ Network Packet for Video Transfer |
| Supported Video Output Format |
12G-SDI ( Converted ) As Input Format |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

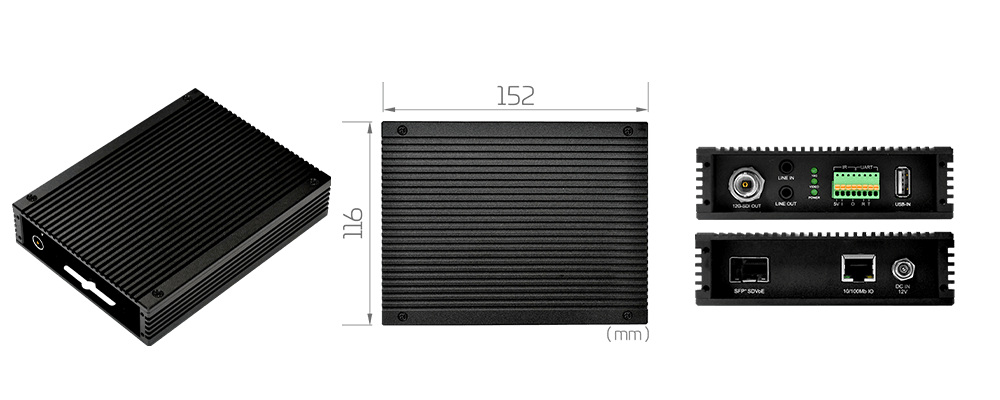

| Dimensio | L:152mm×W:116mm×H:33mm |
