SDVoE to Multi Pro 4K-F

1CH 12G-SDI/HDMI2.0/DP-MST Receiver ( Fiber )

SDVoE to Multi Pro 4K-F
Model Name SDVoE to Multi Pro 4K-F
Description SDVoE to HDMI 2.0, DisplayPort 1.2 and 12G-SDI
Feature Auto Source Format Detection
4 USB interface for USB HID Devices connect
1 SFP+ Connector for SDVoE Video Usage
1 RJ45 Connector for SDVoE Control Usage
Input Interface Video
SFP+×1(For SDVoE Input )

Audio
3.5mm Phone Jack×1 for L/R Audio
Output Interface Converted Video
HDMI 2.0×1
DP 1.2×1
12G-SDI×1

Audio
3.5mm Phone Jack×1 for L/R Audio
Supported Video Input Format SFP+
Network Packet for Video Transfer
Supported Video Output Format SDI ( Converted, for SDI output, Please Provide Supported Resolutions as Below )
12G-SDI
4096x2160p@60/50fps
3840x2160p@60/50fps
6G-SDI
4096x2160p@30/25/24fps
3840x2160p@30/25/24fps
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps

HDMI 2.0/DP1.2( Converted )
As Input Format
GENLOCK Frame Lock Mode N/A
Plug & Play
DC In 7.5V ~ 15V

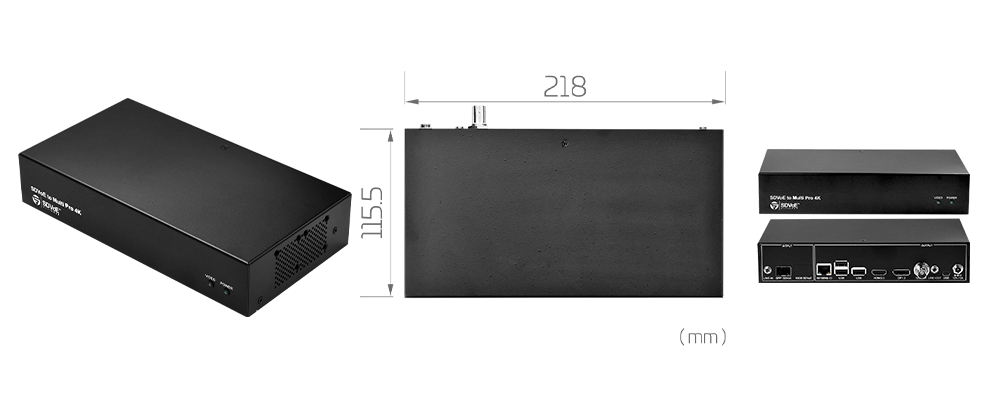

Dimensio L:218mm×W:115.5mm×H:42.5mm
