SDVoE to DP V2
1CH DP Receiver ( Copper + Fiber + PoE )
| Model Name | SDVoE to DP V2 |
| Description | SDVoE to DP with PoE Converter |
| Feature |
PoE Supported ( Supported by 10G/1G RJ45 ) SDVoE Fiber/Copper Transfer Mode Selectable 1 RJ45 Connectors for Control Usage 1 USB interface for USB Devices connect ( Default USB HID, USB2.0 is for Optional ) Bi-Direction Audio Transfer Supported IR Transfer Supported RS232 Transfer Supported Rugged Case |
| Input Interface |
Video RJ45 or SFP+×1 ( For SDVoE input ) Audio 3.5mm Phone Jack×1 for L/R Audio |
| Output Interface |
Converted Video DP×1 Audio 3.5mm Phone Jack×1 for L/R Audio |
| Supported Video Input Format |
RJ45 or SFP+ Network Packet for Video Transfer |
| Supported Video Output Format |
DP ( Converted ) As Input Format |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | ✓ |
| DC In |
7.5V ~ 15V PoE PD Supported ( Supported on 10G or 1G RJ45 Port ) |

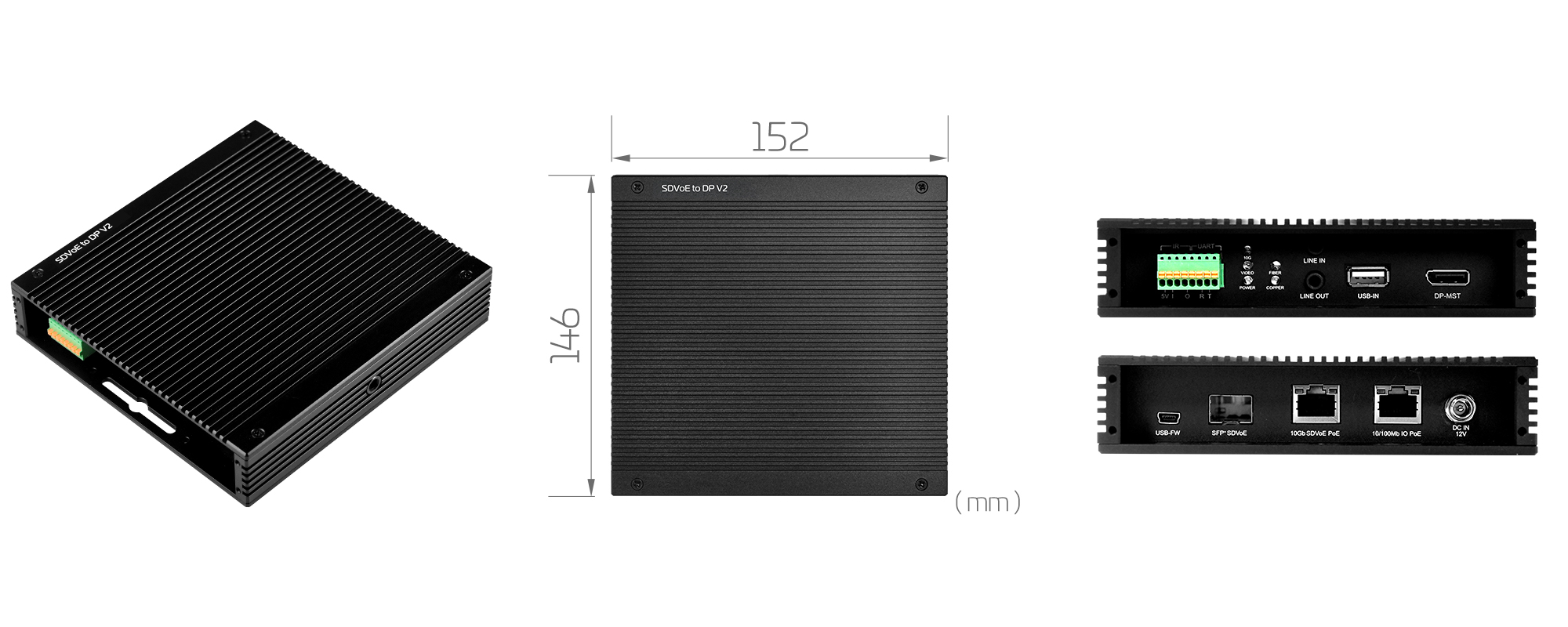

| Dimensio | L:152mm×W:146mm×H:33mm |
