SDVoE to 12G-SDI-C

1CH 12G-SDI Receiver ( Copper )

SDVoE to 12G-SDI-C
Model Name SDVoE to 12G-SDI-C
Description SDVoE to 12G-SDI with Audio and USB HID Converter
Feature 1 USB interface for USB Devices connect
2 RJ45 Connectors for Video and Control Usage
Rugged Case
Bi-Direction Audio Transfer Supported
Bi-Direction IR Transfer Supported
RS232 Transfer Supported
Input Interface Video
RJ45×1(For SDVoE input)

Audio
3.5mm Phone Jack×1 for L/R Audio
Output Interface Converted Video
12G-SDI×1

Audio
3.5mm Phone Jack×1 for L/R Audio
Supported Video Input Format RJ45
Network Packet for Video Transfer
Supported Video Output Format 12G-SDI ( Converted )
As Input Format
GENLOCK Frame Lock Mode N/A
Plug & Play
DC In 7.5V ~ 15V

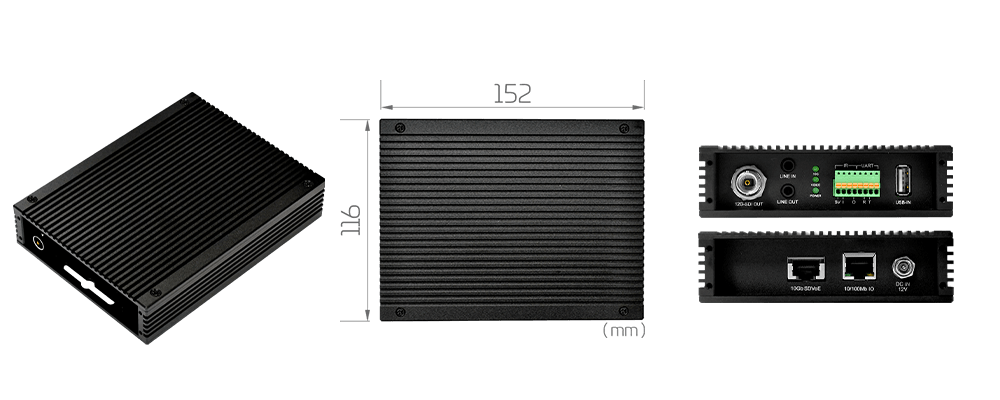

Dimensio L:152mm×W:118mm×H:33mm
